Volume Resistivity: | 8X1012Ohm-meter | Specific Gravity: | 2.85 G/cc |
---|---|---|---|
Heat Capacity: | 1 L /g-K | Color: | Blue |
Continuos Use Temp: | -50 To 200℃ | Hardness: | 35 Shore 00 |
High Light: | thermally conductive filler,thermal conductivity silicone |

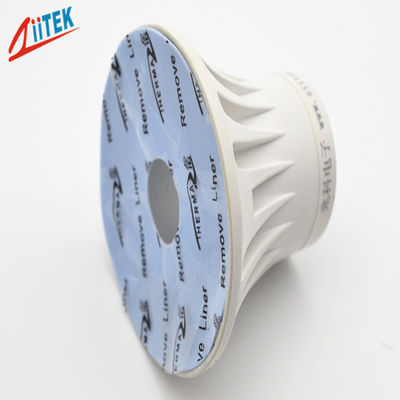

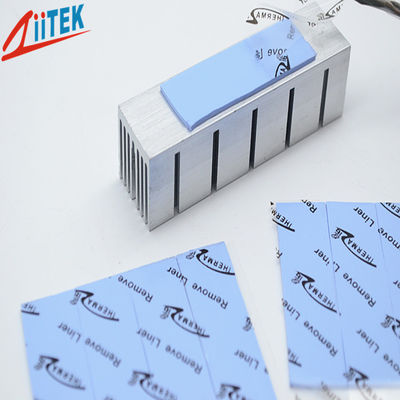

blue 5.0 W/mK ultra soft Thermal Gap Filler TIF100-50-05E with Adhesive Coating Silicone Rubber sheet -50 to 200℃
The TIF100-50-05E use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features:
> Good thermal conductive:5.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF™100-50-05E Series
|
||||
Color
|
Blue |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm | 0.21 |
20mils / 0.508 mm | 0.27 | |||
Specific Gravity
|
2.80 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
40mils / 1.016 mm |
0.43 | |||
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
60mils / 1.524 mm |
0.58 |
|||
Hardness
|
35 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
80mils / 2.032 mm |
0.76 | |||
Tensile Strength
|
55 ps |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
100mils / 2.540 mm |
0.94 | |||
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.00 |
120mils / 3.048 mm |
1.07 | |||
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
140mils / 3.556 mm |
1.25 | |||
Dielectric Constant
|
7.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
160mils / 4.064 mm |
1.38 | |||
Volume Resistivity
|
8X1012Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
180mils / 4.572 mm |
1.50 | |||
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
200mils / 5.080 mm |
1.72 | |||
Thermal conductivity
|
5.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
