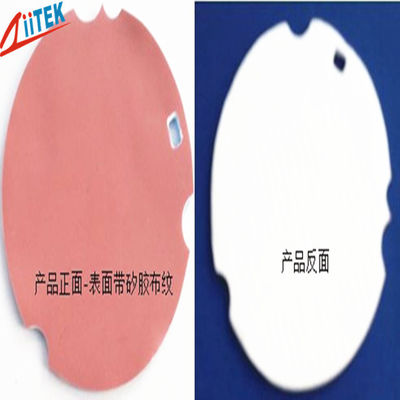

1.25w / m.k Thermally Conductivity Gap Filler / Thermal Insulation Pad

1.25w / m.k Thermally Conductivity Gap Filler / Thermal Insulation Pad
1.25w / m.k Thermally Conductivity Gap Filler / Thermal Insulation Pad 1.25w / m.k Thermally Conductivity Gap Filler / Thermal Insulation Pad 1.25w / m.k Thermally Conductivity Gap Filler / Thermal Insulation Pad

Large Image :  1.25w / m.k Thermally Conductivity Gap Filler / Thermal Insulation Pad

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF280
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Thermal Conductivity& Compostion: 1.25W/m-K Thickness: 2mmT
Color: Pink Branch Name: ZIITEK
Hardness: Various
Highlight:

thermally conductive filler

,

thermal conductivity silicone

,

1.25w / m.k Thermal Gap Filler

1.25w/m.k Thermal Conductivity Gap Filler Thermal Insulation pad



  The TIF280  thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.


Features:


>  Good thermal conductive:1.25 W/mK

>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness


Applications:


>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)



Typical Properties of TIF™200 Series
Product Name TIF™200-U TIF™200-E TIF™200-S Visual Composite Thickness hermal Impedance
@10psi
(℃-in²/W)
Color Various Visual TIF™200-U TIF™200-E TIF™200-S
Construction &
Compostion
Ceramic filled silicone rubber *** 12 mils 0.304mm 0.73 0.75 0.76
20 mils 0.508mm 0.95 0.97 0.98
Specific Gravity 1.75g/cc ASTM D297 30 mils 0.762mm 1.17 1.18 1.20
40 mils 1.016mm 1.28 1.30 1.32
Heat Capacity 1 l/g-K ASTM C351 50 mils 1.270mm 1.47 1.49 1.52
60 mils 1.524mm 1.68 1.70 1.73
Hardness 15 25 45 ASTM 2240 70 mils 1.778mm 1.86 1.88 1.91
Shore 00 80 mils 2.032mm 2.05 2.08 2.11
Tensile Strength 425 psi ASTM D412 90 mils 2.286mm 2.21 2.24 2.28
100 mils 2.540mm 2.37 2.40 2.44
Continuos Use Temp -50 to 200℃ *** 110 mils 2.794mm 2.49 2.53 2.57
120 mils 3.048mm 2.65 2.69 2.73
Dielectric Breakdown Voltage >5500 VAC ASTM D149 130 mils 3.302mm 2.82 2.86 2.91
140 mils 3.556mm 2.95 3.00 3.05
Dielectric Constant 5.5 MHz ASTM D150 150 mils 3.810mm 3.08 3.12 3.17
160 mils 4.064mm 3.20 3.25 3.30
Volume Resistivity 4.0X10"
Ohm-meter
ASTM D257 170 mils 4.318mm 3.34 3.39 3.44
180 mils 4.572mm 3.44 3.49 3.55
Fire rating 94 V0 equivalent UL 190 mils 4.826mm 3.52 3.57 3.63
200 mils 5.080mm 3.62 3.68 3.73
Thermal conductivity 1.25 W/m-K ASTM D5470 Visua l ASTMD751 ASTM D5470



Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
