IGBT Thermal Conductive Pad Silicone Material With Naturally Tacky Surface Eliminating Need For Additional Adhesive Coating

Large Image : IGBT Thermal Conductive Pad Silicone Material With Naturally Tacky Surface Eliminating Need For Additional Adhesive Coating

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF410FG
Document:	TIF400_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

IGBT Thermal Conductive Pad Silicone Material With Naturally Tacky Surface Eliminating Need For Additional Adhesive Coating

Description

Products Name:	IGBT Thermal Conductive Pad Silicone Material With Naturally Tacky Surface Eliminating Need For Additional Adhesive Coating	Density:	2.5g/cm³
Feature:	Soft And Compressible For Low Stress Applications	Thickness:	0.25mmT
Appilcation:	IGBTs	Color:	Yellow
Keywords:	IGBT Thermal Conductive Pad	Thermal Conductivity:	2.0W/mK
Highlight:	thermally conductive filler , high temperature phase change materials , thermal gap filler for IGBTs

IGBT Thermal Conductive Pad Silicone Material

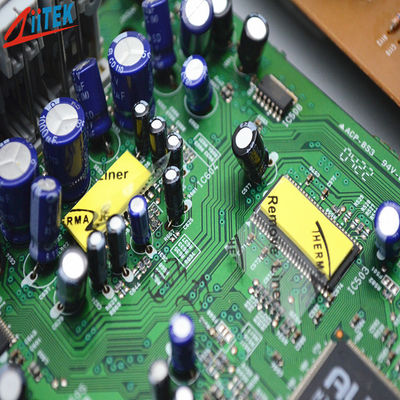

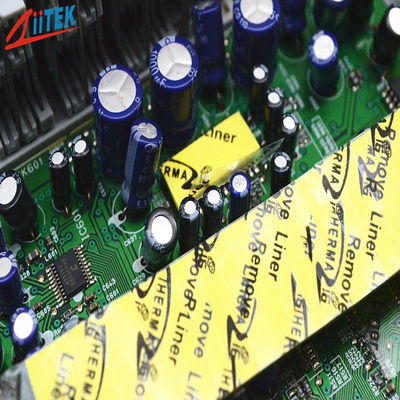

The TIF^®410FG thermally conductive interface materials are designed to fill air gaps between heating elements and heat dissipation fins or metal bases. Their flexibility and elasticity make them ideal for coating uneven surfaces, effectively transferring heat to metal housings or dissipation plates from individual components or entire PCBs. This enhances the efficiency and lifespan of heat-generating electronic components.

Key Features

Good thermal conductivity: 2.0 W/mK
Thickness: 0.25mm
Fiberglass reinforced construction
Specifically designed for IGBTs
Easy release construction
Electrically isolating properties
High durability

Applications

IGBTs
LED lighting heat sinking
RDRAM memory modules
Cooling components to chassis or frame
High-speed mass storage drives
Heat sinking housing at LED-lit BLU in LCD
LED TV and LED-lit lamps
Micro heat pipe thermal solutions
Automotive engine control units
Telecommunication hardware
Handheld portable electronics
Semiconductor automated test equipment (ATE)

Typical Properties of TIF^®400 Series

Property	Value	Test Method
Color	Yellow	Visual
Construction	Ceramic filled silicone elastomer	-
Thickness range (inch/mm)	0.010"~0.020" (0.25~0.50mm) \| 0.030"~0.200" (0.75~5.00mm)	ASTM D374
Hardness (Shore 00)	65 \| 45	ASTM 2240
Density (g/cm³)	2.5	ASTM D792
Recommended Operating Temperature (℃)	-40-200℃	-
Breakdown Strength (V/mm)	≥5500	ASTM D149
Dielectric Constant @1MHz	5.0	ASTM D150
Volume Resistivity (Ohm-cm)	＞1.0×10¹²	ASTM D257
Thermal conductivity (W/m-K)	2.0	ASTM D5470 / ISO22007
Flame Rating	V-0	UL94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
