3mmT*200*400mm Size 6.2W / MK Thermal Gap Filler Thermally Insulating Materials

3mmT*200*400mm Size 6.2W / MK Thermal Gap Filler Thermally Insulating Materials
3mmT*200*400mm Size 6.2W / MK Thermal Gap Filler Thermally Insulating Materials
video play

Large Image :  3mmT*200*400mm Size 6.2W / MK Thermal Gap Filler Thermally Insulating Materials

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: RoHs
Model Number: TIF6120G
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Thickness: 3mmT Compliance: RoHS
Materials: 6.2W/mK Thermal Gap Filler Feature: 200*400 Raw Material Size
Brand: Ziitek
High Light:

high temperature phase change materials

,

thermal conductivity silicone

,

6.2W / MK Thermal Gap Filler



3mmT*200*400mm size 6.2W/mK thermal gap filler from China factory



The TIF6120G thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.

Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.


Features:



> 200*400mm raw material size

> with China factory price

> High thermal conductive: 6.2 W/mK

> delivery in 3-5 days

> Available in varies size



Applications:



> LED lighting

> Micro heat pipe thermal solutions

> Various electronics

> LED TV and LED-lit lamps
> High speed mass storage drives
> RDRAM memory modules
> Automotive engine control units
> Telecommunication hardware





Typical Properties of TIF 6120G
Color

Garnet

Visual Composite Thickness  hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm

0.55

20mils / 0.508 mm

0.82

Specific Gravity

2.95 g/cc

ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45

Hardness
50
(Shore 00)
ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05

Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
>1500~>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56

Dielectric Constant
5.5 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77

Volume Resistivity
5.2X10"
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14

Thermal conductivity
3W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Standard Thicknesses:
0.120" (3 mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

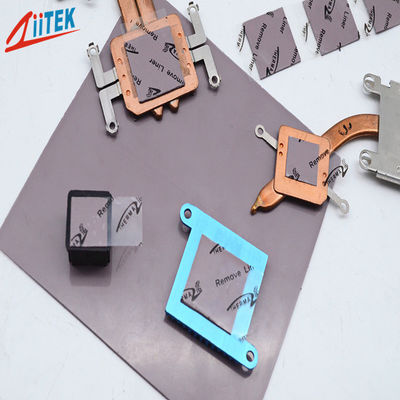

3mmT*200*400mm Size 6.2W / MK Thermal Gap Filler Thermally Insulating Materials 0
