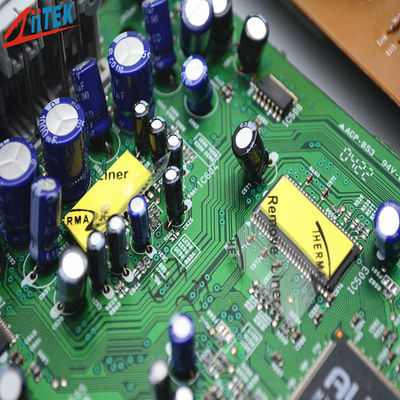

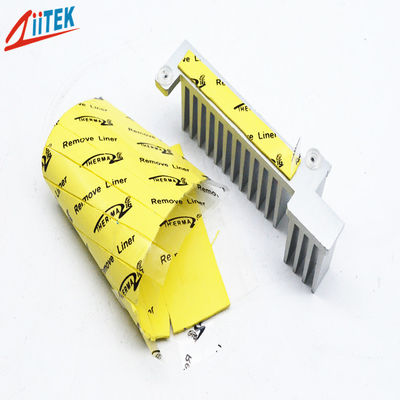

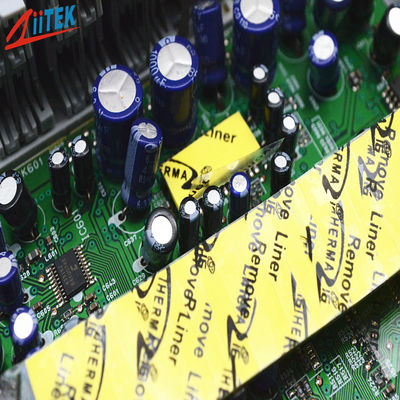

TIF4100 Yellow Thermal Gap Filler Thermal Insulators Materials For Various Electronics

TIF4100 Yellow Thermal Gap Filler Thermal Insulators Materials For Various Electronics
TIF4100 Yellow Thermal Gap Filler Thermal Insulators Materials For Various Electronics
video play

Large Image :  TIF4100 Yellow Thermal Gap Filler Thermal Insulators Materials For Various Electronics

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: RoHs
Model Number: TIF4100
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Thickness: 2.5mmT Materials: Yellow Thermal Gap Filler
Feature: Thermal Gap Filler From Guangdong Factory Application: Various Electronics
High Light:

thermally conductive filler

,

thermal conductivity silicone



TIF4100 yellow thermal gap filler from Guangdong factory for various electronics



The TIF4100 thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.

Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.


Features:



> 2.5mm thickness

> 200*400mm raw material size

> high quality, low cost

> Good thermal conductive: 2.0 W/mK

> on time delivery



Applications:



> Various electronics

> LED TV and LED-lit lamps

> High speed mass storage drives
> RDRAM memory modules

> LED lighting

> Micro heat pipe thermal solutions

> Automotive engine control units
> Telecommunication hardware





Typical Properties of TIF 4100
Color

yellow

Visual Composite Thickness  hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm

0.55

20mils / 0.508 mm

0.82

Specific Gravity

2.47 g/cc

ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45

Hardness
45
(Shore 00)
ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05

Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
>1500~>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56

Dielectric Constant
10.2 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77

Volume Resistivity
7.3X10"
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14

Thermal conductivity
2 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Standard Thicknesses:
0.100" (2.5 mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

TIF4100 Yellow Thermal Gap Filler Thermal Insulators Materials For Various Electronics 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge



TIF400 Datasheet-REV02.pdf
