Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules

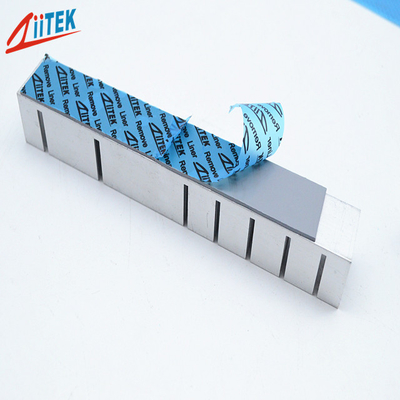

Large Image : Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-40-11S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules	Thermal Conductivity:	4.0W/m-K
Hardness:	45±5 Shore 00	Operating Temp:	-40-160℃
Keywords:	Cpu Thermal Pad	Specific Gravity:	3.28 G/cc
Dielectric Constant（@ 1MHz）:	4.75	Flame Rating:	94-V0
Sample:	Sample Free	Application:	Gpu RDRAM Memory Modules
Highlight:	thermal conductive material , cpu thermal pad , Cpu thermal conductive adhesive pads

Cpu Thermal Pad 4.0W/MK With 45 Shore 00 Hardness For RDRAM Memory Modules

The TIF100-40-11S Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 4.0W/mK

> Outstanding thermal performance

> Broad range of hardnesses available
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> CPU
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF^®100-40-11S Series
Color	Gray	Visual
Construction	Ceramic filled silicone elastomer	******
Thickness Range(inch/mm)	0.020~0.20inch(0.5mm~5.0mm)	ASTM D374
Density(g/cc)	3.28 g/cc	ASTM D792
Hardness	45±5 Shore 00	ASTM 2240
Recommended Operating Temperature(℃)	-40 to 160℃	******
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant @ 1MHz	4.75	ASTM D150
Volume Resistivity	≥1.0X10¹² Ohm-meter	ASTM D257
Flame rating	94-V-0	UL94(E331100)
Thermal conductivity	4.0 W/m-K	ASTM D5470

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
