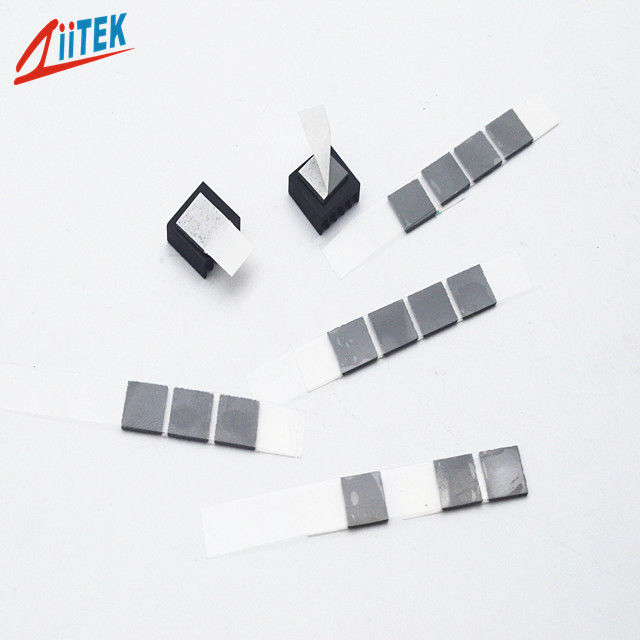

Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material

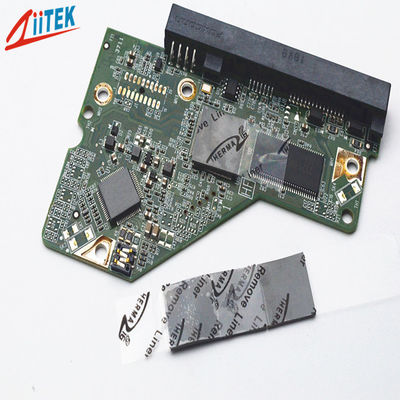

Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material
Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material
video play

Large Image :  Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF520-20-11U
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Features: Soft And Compressible For Low Stress Applications Product Name: Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material
Keywords: Electric Insulation Thermal Pad Application: CPU, Display Card ,heat Sink
Thickness: 0.020"(0.5mm) Hardness: 27 Shore 00
Fire Rating: 94-V0 Thermal Conductivity: 2.0W/m-K
Highlight:

Silicon Protective Cushioning Thermal Pad

,

Electric Insulation Thermal Conductive Pad

Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material



The TIF®500-20-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features:



> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIF®500-20-11U Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.5 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 2.0 W/m-K ASTM D5470
2.0 W/m-K ISO22007



Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material 0

Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
