Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity

Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity
Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity

Large Image :  Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIS680-15A/B
Payment & Shipping Terms:
Minimum Order Quantity: 2kg/LOT
Packaging Details: 1kg/can
Delivery Time: 2-3 work day
Supply Ability: 1000KG
Detailed Product Description
Color: White Viscosity@25℃ Brookfield: 4,000 CPs
Specific Gravity: 1.5 G/cc Shelf Life @25℃ In Sealed Container: 12 Months
Hardness @25℃: 85 Shore D Fire Resistance UL: 94-V0
High Light:

heat conductive glue

,

diy conductive glue

Power transformers Thermal Conductive Glue , 1.5 g / cc Specific Gravity Heat Conductive Epoxy Glue



Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

  TIS™ 680-15AB is a two-component, high thermal conductive, low temperature cured, long pot life, fire resistant Silica encapsulant glue. It is design for potting of capacitors and electrical devices.Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features

>  Good thermal conductive: 1.5W/mK
>  Excellent insulation and smoothly sourface.
>  Low shrinkage
>  Low viscosity, expediting air releaseed.
>  Excellent in solvents and water proof.
>  Longer life time.
>  Excellent thermal shock efficiecy and impact resistance


Application

>  To potting LED Lighting heat spreader and  power- driver.
>  Ferrite cements; tip type LED; good cementation to aromatic polyester
>  Relay sealant; Good adhesion to rubber, ceramics,  PCB and plastics
>  Power transformers and coils; Potting capacitors;  Potting of small electrical devices
>  Adhesion to metal glass and plastic; LCD & substrates adhesion; Coating and sealant;  Coil ; IGBTS;          Transformer; Fire retardant
>  Optical / medical component adhesive

Typical Uncured Material   TIS™ 680-15A (Resin)
Color  White
Viscosity@25℃ Brookfield  4,000 cPs
Specific Gravity  1.5 g/cc
Shelf life @25℃ in sealed container  12 months



TIS™ 680-10B (Hardener)
Color  White
Viscosity@25℃ Brookfield  4,000 cPs
Shelf life @25℃ in sealed container  12 months



                                                                                                      Mix Ratio (By weight)
TIS™ 680-10A : TIS™ 680-10B = 100 : 100
Viscosity @25℃ 4,000 cPs
Working pot life (250 g @25℃)  30 min
Specific Gravity  1.5 g/ccn



Cure Schedule
Cure 3 hours at 25℃
Cure 20 min at 70℃



Cured Properties
Hardness @25℃ 85 Shore D
Service temperature -40℃ to +160℃
Glass transition temperature Tg   92℃
Elongation 4.50%
Coefficient of thermal expansion, / ℃ 3.0 x 10-5
Fire resistance UL 94 V-0
Moisture absorption % wt gain 24 hours water immersion @25℃ < 0.1
Thermal
Thermal Impedance @10psi 0.36℃-in²/W
ELECTRICAL AS CURED
Dielectric Strength 400 volts / mil
Dielectric Constant 4.2 MHz
Dissipation factor 0.029 MHz
Volume resistivity, ohm-cm @ 25℃ 3.0 X 1013

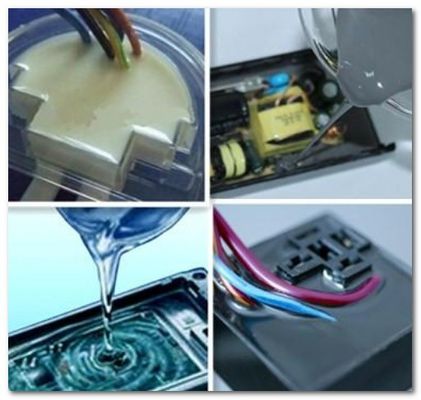

Power transformers Thermal Conductive Epoxy Glue , 1.5 g / cc Specific Gravity 0

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL
