Product Details:
Payment & Shipping Terms:
|
| Name: | Black Two Pats Excellent Insulation 1.5W/m-K Thermally Conductive Adhesive Sealant Glue | Color: | Black |
|---|---|---|---|
| Viscosity@25℃ Brookfield: | 10000 CPs | Specific Gravity: | 1.6 G/cc |
| Shelf Life @25℃ In Sealed Container: | 12 Months | Hardness @25℃: | 85 Shore D |
| Fire Resistance UL: | 94-V0 | Keywords: | Thermally Adhesive Sealant Glue |
| Thermal Conductivity: | 1.5W/m-K | ||
| Highlight: | heat conductive glue,diy conductive glue,Thermal Conductive Glue 1.5 g / cc |
||
Black Two Pats Excellent Insulation 1.5W/m-K Thermally Conductive Adhesive Sealant Glue
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

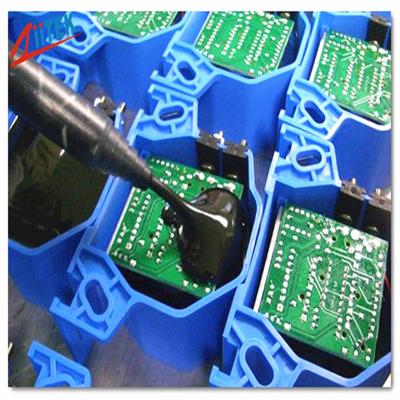

TIETM280-15AB Series is a two compound, high thermal conductive, low temperature cured, long pot life,fire resistant silica encapsulant glue. It is design for potting of capacitors and electrical devices.Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
TIE280-15AB-Series-Datasheet.pdf
Feature
> Good thermal conductive: 1.5W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy and impact resistance
Applications

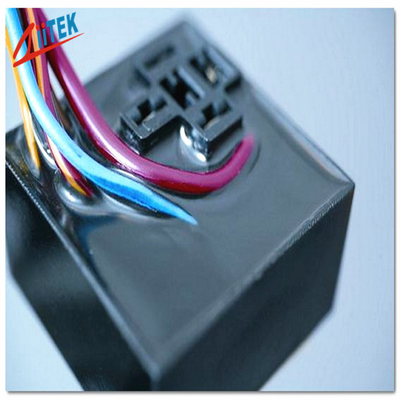

> Automotive starters potting; General potting;
> Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion toaromatic polyester
> Relay sealant;Good adhesion to rubber, ceramics,PCB and plastics

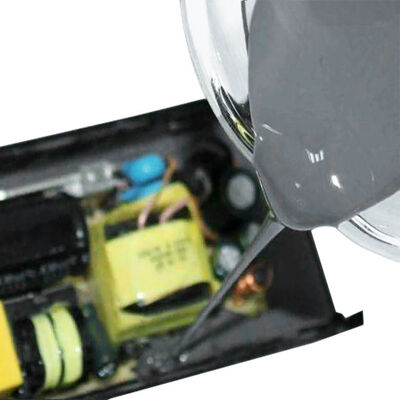

> Power transformers and coils; Potting capacitors;Potting of small electrical devices
> Adhesion to metal glass and plastic;LCD & substrates adhesion;
> Coating and sealant; Coil ; IGBTS;Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE280-15AB Series | |||
| Typical Uncured Material | |||

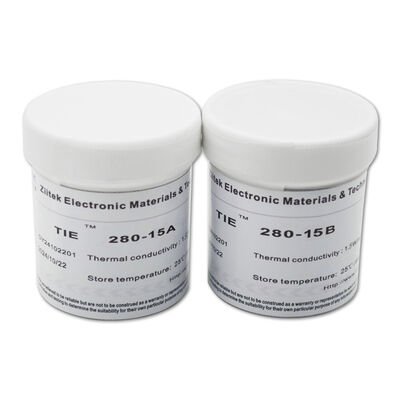

| TIETM280-15A(Resin) | Mixing ratio (weight ratio) A:=1 :1 |
||
| Color | Black | ||
| Viscosity @25℃ Brookfield | 15000 cPs | Viscosity @25℃ Brookfield | 10000 cPs |
| Operating time (@25℃) | 45 mins | ||
| Shelf life @25℃ in sealed | 12 months | specific Gravity | 1.6 g/cc |
| Mixture Color | Black | ||
| TIE280-15B(Hardener) | Cure Schedule | ||
| Color | Black | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 7000 cPs | ||
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 30 mins |
| Cured Properties | |||
| Hardness @25℃ | 85 Shore D | ||
| Operating temperature | -40℃ ~160℃ | ||
| Glass transition temperature Tg | 92℃ | ||
| Rate of tension | 0.001 | ||
| Coefficient of thermal expansion, /℃ | 3.0x 10^(-5) | ||
| Fire resistance uL | 94 V-0 | ||
| Moisture absorption % wt gain 24 hours water immersion @25℃ | <0.1% | ||
| Thermal Conductivity | 1.5 W/m-K | ||
| Dielectric Breakdown Voltage | 300 volts / mil | ||
| Dielectric Constant@1MHz | 4.2 | ||
| volume resistivity, ohm-cm @ 25℃ | 3.0x 10^13 | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
