Moisture Resistance 2.5W/MK One Component Silicone Thermal Conductive Adhesive For Household Appliances
TIS®580-25 is a one-component, room-temperature curing silicone rubber with excellent adhesion, high strength and good thermal conductivity. It features superior electrical insulation, sealing performance and aging resistance, and can be used within the temperature range of -50℃ to 250℃. As a dealcoholized silicone adhesive, it cures by contacting moisture in the air and on the surface of the adherend, and is suitable for the electronics and lighting industries.
Feature
>Good thermal conductivity
>Excellent adhesion
>Superior electrical insulation
>Moisture resistance and shock resistance
>Outstanding high temperature resistance and hot water resistance
Application
>Bonding, insulation and sealing of household appliances and electrothermal appliances

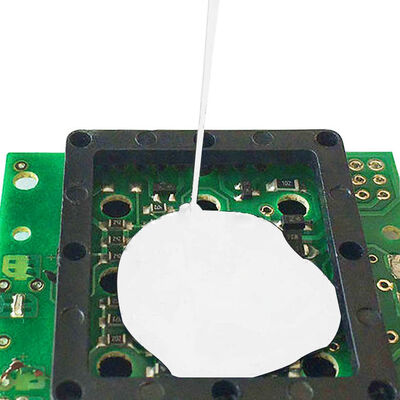

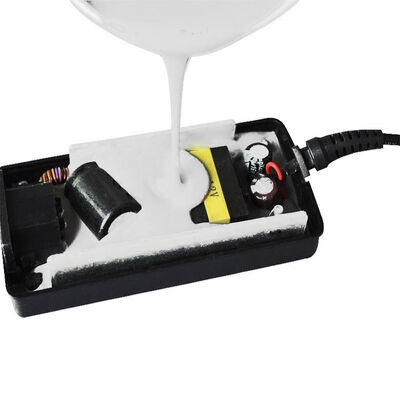

>Insulating protective coating for electrical appliances and sealing of plugs and sockets
>Maintenance of TV sets and output transformer components
>Moisture-proof sealing between high -voltage caps and hook springs
>Bonding, thermal conduction and insulation sealing for neon transformers, household appliance components, electric heating tubes, rice cookers, electric irons and other electrothermal equipment
| Typical Properties of TIS®580-25 Series |
| Property |
Value |
Test Method |
| Appearance |
White Paste |
Visual |
| Density (g/cm3, 25℃) |
1.6 |
ASTM D792 |
| Table Dry Time (min,25℃,55%RH) |
≤20 |
- |
| Cure type (Single-Component) |
De-alcoholized type |
- |
| Viscosity @25℃ (cps) |
20000 |
ASTM D1084 |
| Complete Curing Time (d, 25℃) |
3-7 |
- |
| Tensile Strength (N/cm) |
8 |
ASTM D412 |
| Hardness (Shore A) |
45 |
ASTM D2240 |
| Cutting Strength (N/cm) |
≥2.5 |
GB/T 7124 |
| Recommended Operating Temperature (°C) |
-50～250 |
- |
| Volume Resistivity(Ω·cm) |
2.0x1014 |
ASTM D257 |
| Breakdown Voltage (V/mm) |
21000 |
ASTM D149 |
| Dielectric Constant (106Hz) |
3.7 |
ASTM D150 |
| Thermal Conductivity W/(m·K) |
2.5 |
ASTM D5470 |
| Flame Rating |
V-0 |
UL 94 (E331100)
|
Instructions For Use
1.Clean the surface:Prepare thesurface of theobject tobeglued or coated by cleaning it,removing rust,dust,andgrease.
2. Apply the adhesive: Unscrew the cap of the adhesive tube,use the tip of the cap to pierce the seal, and squeeze the adhesive onto the cleaned
surface for coating or pouring.
3.Curing:The coated partswilslowly formaskinwhenplaced in the air,andanyoperationsshould becompleted before thesurfaceskins over.The
curing process progresses from the surface inward,with the adhesive curing to a depth of 2-4mm within 24 hours (at room temperature and 55%
relative humidity). If the area is deeper,especially in places that are not easily exposed to air, the complete curing time wll be extended; if the
temperature is lower, the curing time will also be prolonged.
4. Note: Do not move, use, or package the treated parts until sufficient strength has been achieved.
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
Thermal gap pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal grease
Phase change material
Thermal gel
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
