| Name: | Black Highly Thermal Conductive Epoxy Glue Two-Component Epoxy Adhesive Excellent Heat | Color: | Black |
|---|---|---|---|
| Viscosity@25℃ Brookfield: | 10000 CPs | Specific Gravity: | 1.6 G/cc |
| Dielectric Constant: | 4.2 MHz | Dielectric Breakdown Voltage: | 300 Volts /mil |
| Thermal Conductivity: | 1.2W/m-K | Keywords: | Thermal Conductive Epoxy Glue |
| Highlight: | diy conductive glue,thermal adhesive glue,1.45 g/cc thermal Conductive Glue |
||

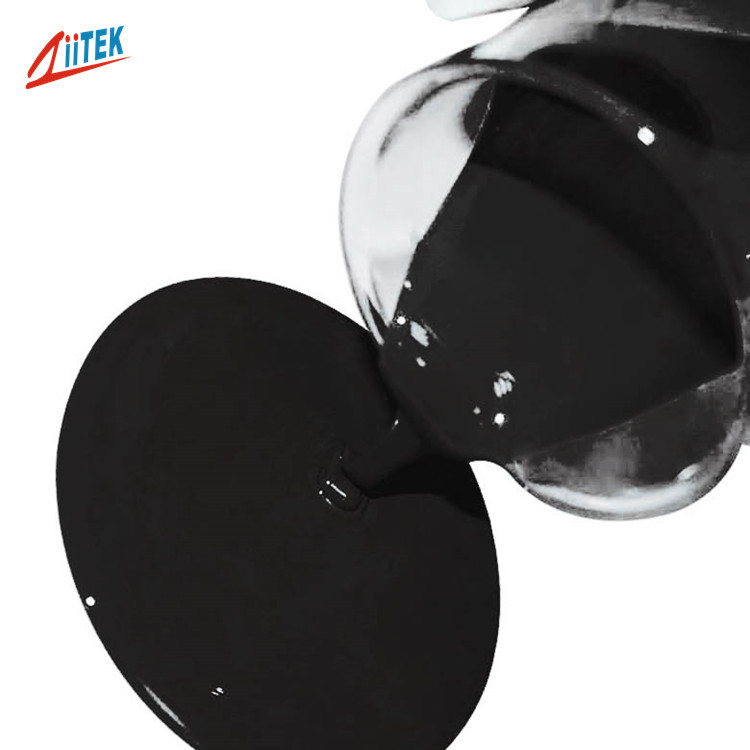

Black Highly Thermal Conductive Epoxy Glue Two-Component Epoxy Adhesive Excellent Heat
TIE™280-12AB is a two compound, high thermal conductive, low temperature cured, long pot life,fire resistant epoxy encapsulant compound. lt is design for potting of capacitors and electricaldevices.
TIE280-12AB-Series-Datasheet (2).pdf
Feature
> Good thermal conductive: 1.2W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity , expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy andimpact resistance
Applications
> Automotive starters potting; General potting;
> Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion toaromatic polyester
> Relay sealant; Good adhesion to rubber, ceramics,PCB and plastics

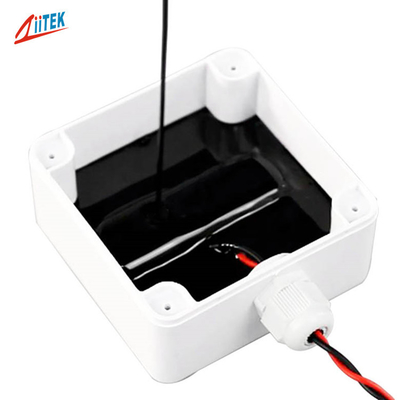

> Power transformers and coils; Potting capacitors;Potting of small electrical devices
> Adhesion to metal glass and plastic;LCD & substrates adhesion; Coating and sealant;Coil ; IGBTS;Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE280-12AB Series | |||
| Typical Uncured Material | |||
| TIETM280-12A(Resin) | Mixing ratio (weight ratio) A:=1 :1 |
||
| Color | Black | ||
| Viscosity @25℃ Brookfield | 15000 cPs | Viscosity @25℃ Brookfield | 10000 cPs |
| Operating time (@25℃) | 45 mins | ||
| Shelf life @25℃ in sealed | 12 months | specific Gravity | 1.6 g/cc |
| Mixture Color | Black | ||
| TIE280-12B(Hardener) | Cure Schedule | ||
| Color | Black | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 7000 cPs | ||
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 30 mins |
| Cured Properties | |||
| Hardness @25℃ | 85 Shore D | ||
| Operating temperature | -40℃ ~160℃ | ||
| Glass transition temperature Tg | 92℃ | ||
| Rate of tension | 0.10% | ||
| Coefficient of thermal expansion, /℃ | 3.0x 10^(-5) | ||
| Fire resistance uL | 94 V-0 | ||
| Moisture absorption % wt gain 24 hours water immersion @25℃ | <0.1% | ||
| Thermal Conductivity | 1.2 W/m-K | ||
| Dielectric Breakdown Voltage | 300 volts / mil | ||
| Dielectric Constant@1MHz | 4.2 | ||
| volume resistivity, ohm-cm @ 25℃ | 3.0x 10^13 | ||
Package & Delivery:
1kg/can
5KG A/B each.
10KG A/B each.
Lead Time :Quantity 200KG 3-5 working days.
Est. Time(days): To be negotiated.
Comapany Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
