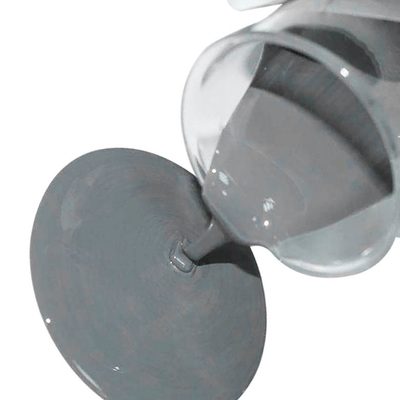

High Performance One Component Thermal Conductivity Epoxy Glue For Electronic Potting Compound Epoxy
Product Summary:
TIETM380-25 is a one component, heat cured epoxy adhesive. lt has excellent thermal conductivity and bond strength.
TIETM380-25 is a good choice for high speed production lines because it has the rheology to allow stencil printing and a fast, one component, heat cure.
TIE380-25.pdf
Feature
> Good thermal conductive: 2.5W/mK
> Good maneuverability and adhesion performance
> Low shrinkage
> Low viscosity, easy-to-gas emissions
> Good solvent resistance, water resistance
> Longer working hours
> Excellent resistance to thermal shock
Applications

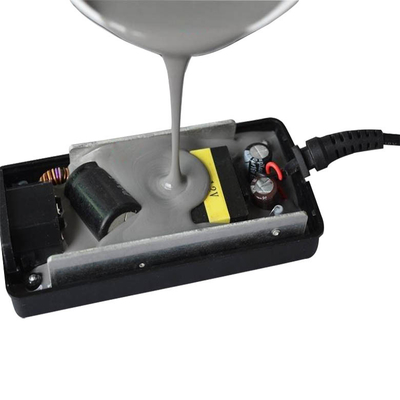

> Automotive starters potting; General potting;
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
| Typical Properties of TIE380-25 |
| Chemical type |
Epoxy |
Test Method |
| Appearance uncured |
Gray Paste |
Visual |
| Appearance cured |
Dull Gray Solid |
visual |
| Components |
One Component |
****** |
| Heat Capacity |
0.7 l/g-K |
ASTM C351 |
| Key Substrates |
Metals, ceramics |
****** |
| Hardness |
92 Shore A |
ASTM 2240 |
| Continuous Use Temp |
-40~180℃ |
****** |
| Tensile strength Al/Al@25°C |
>2800psi |
****** |
| Thermal Conductivity |
2.5 W/m-K |
ASTM D5470 |
| Application Features |
| Color |
Gray |
| Viscosity@25°℃ |
150,000 cPs |
| Specific Gravity@25-℃ |
2.1g/cc |
| Shelf life @25℃ |
10 Days |
| Shelf life @0℃ |
6 Months |
| Storage methods and temperature will affect the shelf life |
| Curing procedures |
| Curing temperature |
Curing time |
| 100℃ |
3 Hours |
| 125℃ |
1.5 Hour |
| 150℃ |
20 Minutes |
| 170℃ |
5 Minutes |
