Two-Component Shockproof Waterproof Electronic Insulation Led Driver Thermal Conductive Silicone Potting Compound AB Glue

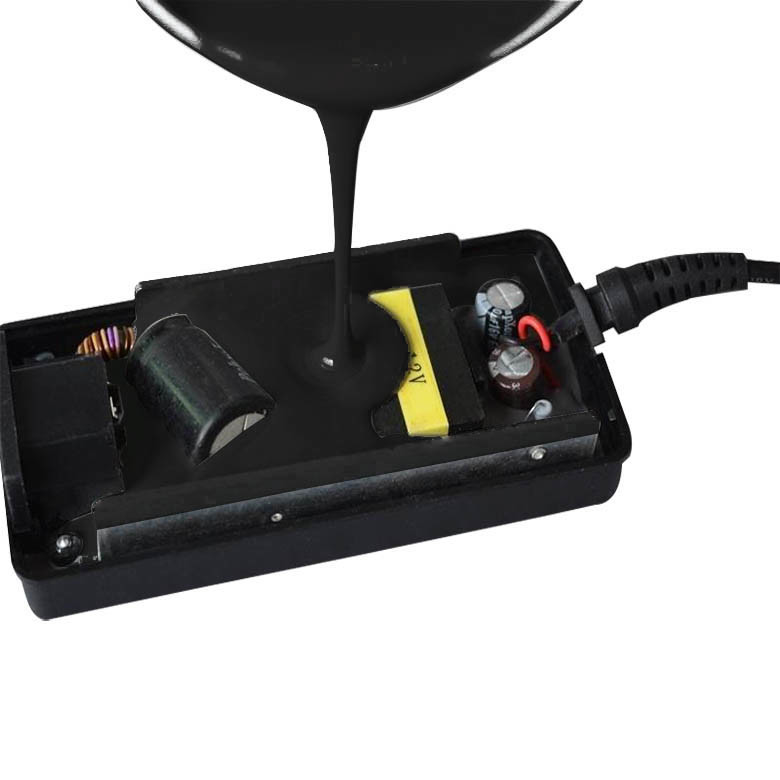

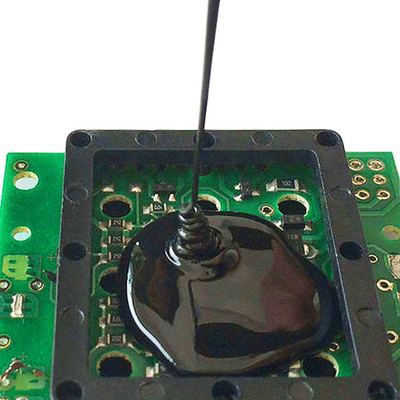

TIETM 280-15AB Series is a two-component, high thermal conductive, lowtemperature cured, long pot life, fire resistant Silica encapsulant glue. It is design for potting of capacitors and electrical devices.Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
TIE280-15AB-Series-Datasheet.pdf
Features
> Good thermal conductive: 1.5W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy and impact resistance
Application
> Automotive starters potting; General potting Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion to aromatic polyester
> Relay sealant; Good adhesion to rubber, ceramics PCB and plastics

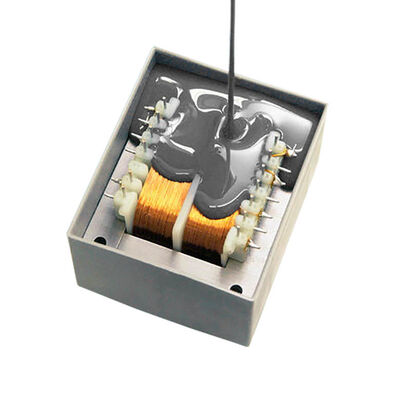

> Power transformers and coils; Potting capacitors Potting of small electrical devices
> Adhesion to metal glass and plastic LCD & substrates adhesion; Coating and sealant; Coil ; IGBTS; Transformer; Fire retardant
> Optical / medical component adhesive

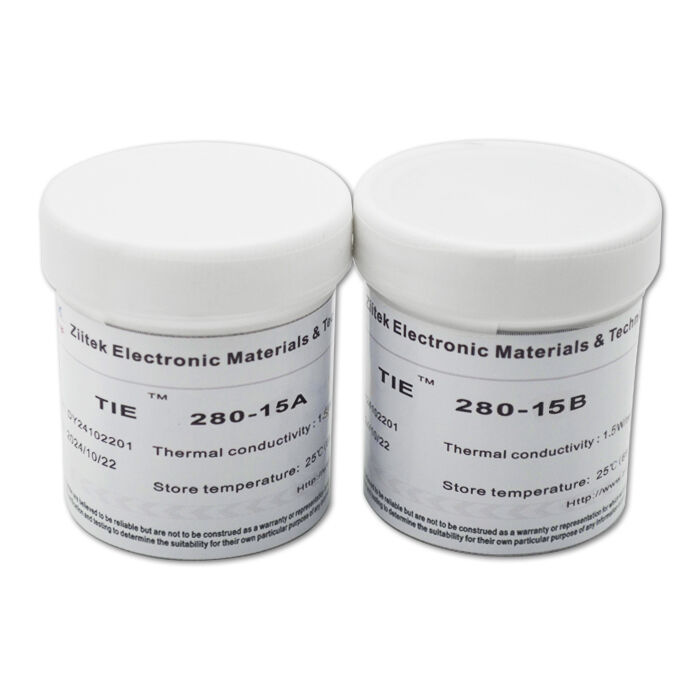

| Typical Uncured Material TIE™ 280-15A (Resin) |
| Color |
Black |
| Viscosity@25℃ Brookfield |
15,000 cPs |
| Specific Gravity |
1.6 g/cc |
| Shelf life @25℃ in sealed container |
12 months |
| TIE™ 280-15B (Hardener) |
| Color |
Black |
| Viscosity@25℃ Brookfield |
7,000 cPs |
| Shelf life @25℃ in sealed container |
12 months n |
| Mix Ratio (By weight) TIE™ 280-15A : TIE™ 280-15B = 1 : 1 |
| Viscosity @25℃ |
10,000 cPs |
| Working pot life (250 g @25℃) |
45 min |
| Specific Gravity |
1.6g/ccn |
| Cure Schedule |
| Cure 3 hours at 25℃ 3hours |
| Cure 30 minutes at 70℃ 30mins |
| Cured Properties |
| Hardness @25℃ |
85 Shore D |
| Service temperature |
-40℃ to 160℃ |
| Glass transition temperature Tg |
92℃ |
| Elongation |
0.10% |
| Coefficient of thermal expansion, / ℃ |
3.0 X 10-5 |
| Fire resistance UL |
Meet 94 V-0 |
| Moisture absorption % wt gain 24 hours water immersion @25℃ |
<0.1% |
| Thermal |
| Thermal Conductivity |
1.5W/m-K |
| Thermal Impedance @10psi |
0.31 ℃-in²/W |
| ELECTRICAL AS CURED |
| Dielectric Strength |
300 volts / mil |
| Dielectric Constant |
4.2 MHz |
| Dissipation factor |
0.029 MHz |
| Volume resistivity, ohm-cm @ 25℃ |
3.0 X 1013 |
Product packaging
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
