High-performance Heat-conductive Acrylic Adhesive Tape Double-sided Adhesive Thermal Adhesive Tape

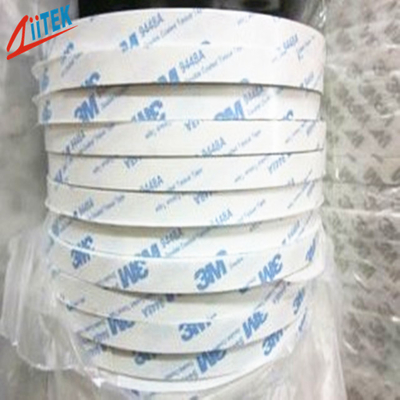

Large Image : High-performance Heat-conductive Acrylic Adhesive Tape Double-sided Adhesive Thermal Adhesive Tape

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIA808AL

Payment & Shipping Terms:

Minimum Order Quantity:	10SQM
Packaging Details:	10RL/bag
Delivery Time:	2-3Work day
Supply Ability:	1000SQM/Day

Contact Now

Detailed Product Description

Products Name:	High-performance Heat-conductive Acrylic Adhesive Heat-conductive Double-sided Adhesive	Backing Type:	Aluminum Foil
Specific Gravity:	2.2 G/cc	Construction &Compostion:	Acrylic Glue
Peel Adhesion:	1200 G/inch2	Thermal Conductivity:	1.6 W/mK
Composite Thickness:	0.08“（0.203mm）	Keywords:	Thermal Conductive Double-sided Adhesive
Highlight:	Heat-conductive Acrylic Adhesive Tape , Double-sided Acrylic Adhesive Tape , Double-sided Thermal Adhesive Tape

High-performance heat-conductive acrylic adhesive heat-conductive double-sided adhesive

The TIA™800ALSeries products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA800AL Series Datasheet-(E)-REV01.pdf

Features

● Thermal Conductivity 1.6W/mK.
● High bond strength to a variety of surfaces
● Double sided pressure sensitive adhesive tape.
● High performance, thermally conductive acrylic adhesive
● allow for good conformability to irregular surfaces and good electrical isolation
● Easy Application
● Eliminates need for external hardware (screws, clips, etc.)
● Available with easy release tabs

Applications

● LED Power Supply
● LED Controller
● LED Lights
● LED Ceilinglamp
● Monitoring the Power Box
● AD-DC Power Adapters
● Piranha wroof and common lED module
● LED module for Channelletters
● SMD LED module
● LED Flesible strip, LED bar
● LED PanelLight

Typical Properties of TIA™800AL Series
Typical Properties	TIA 806AL	TIA 808AL	TIA 810AL	Test Method
Color	White			Visual
Adhesive Type	Acrylic Adhesive			******
Backing Type	Aluminum Foil			******
Continuous Use Temp	-45℃ to 120 ℃			******
Thickness	0.006" / 0.152mm	0.008" / 0.203mm	0.010" / 0.254mm	ASTM D374
Voltage Breakdown	> 1000 Vac	> 1200 Vac	> 1500 Vac	ASTM D149
180° Peel Adhesion	> 1200 g/inch(Steel Immediate)			PSTC-1
180° Peel Adhesion	> 1400 g/inch(Steel after 24 hrs)			PSTC-1
Holding Power 25℃/Hours	> 48 Hours			PSTC-7
Holding Power 80℃/Hours	> 48 Hours			PSTC-7
Thermal Conductivity	1.6 W/mK			ASTM D5470

Standard Thicknesses:
0.006"(0.152mm) , 0.008"(0.203mm), 0.010"(0.254mm),

Consult the factory alternate thickness.

Standard Sizes:
16" x 100"(406mm x 30.48mm)

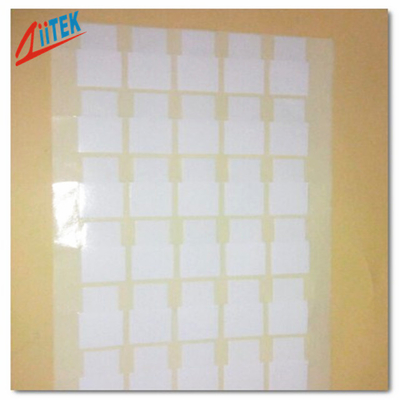

Individual die cut shapes can be supplied.

Company Profile

Dongguan Zhaoke Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
