Double Side Glass Fabric Thermally Conductive Tape For LED Lighting

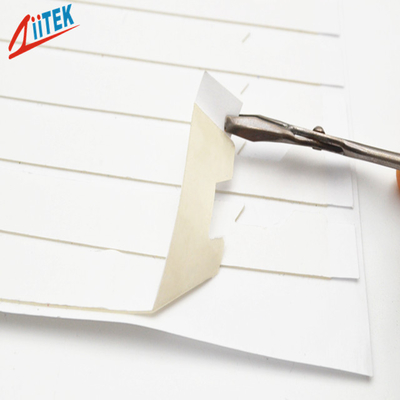

Large Image : Double Side Glass Fabric Thermally Conductive Tape For LED Lighting

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIA800

Payment & Shipping Terms:

Minimum Order Quantity:	10SQM
Price:	0.1-10 USD/PCS
Packaging Details:	10RL/bag
Delivery Time:	2-3Work day
Payment Terms:	T/T
Supply Ability:	1000SQM/Day

Contact Now

Detailed Product Description

Products Name:	Double Side Glass Fabric Thermally Conductive Tape For LED Lighting	Color:	White
Adhesive Type:	Acrylic Adhesive	Thickness:	Available In A Variety Of Sizes
Voltage Breakdown(V):	≥ 4000	180° Peel Adhesionk (gf/inch) Steel, 24 Hrs:	≥ 1400
Keywords:	LED Double Thermal Adhesive Tape	Application:	LED Lighting
Highlight:	Double Side Thermally Conductive Tape , LED Lighting Thermally Conductive Tape

Double Side Glass Fabric Thermally Conductive Tape For LED Lighting

The TIA^®800 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.

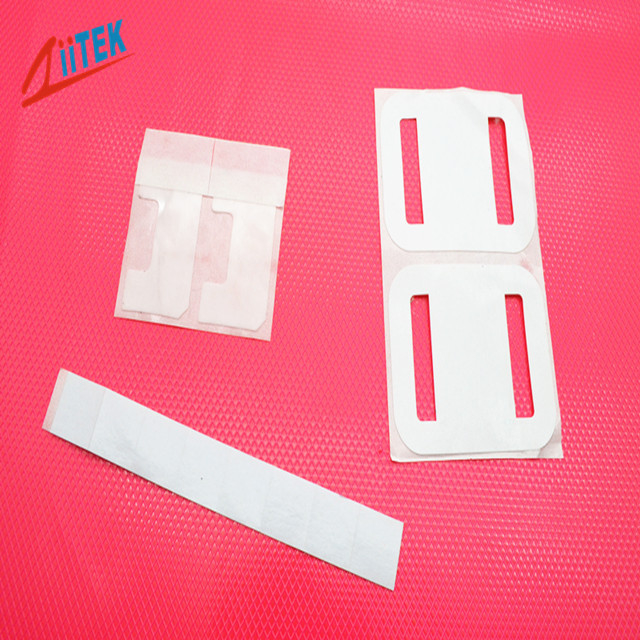

Double Side Glass Fabric Thermally Conductive Tape For LED Lighting 0

Features

> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.

> Hihg bond strength to a variety of surfaces double sided pressure sensitive adhesive tape

Applications

> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting

Typical Properties of TIA^®800 Series
Product Name	TIA^®802	TIA^®804	TIA^®806	TIA^®808	TIA^®810	TIA^®812	TIA^®815	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							******
Continuous Use Temp	-40℃ to 125℃							******
Thickness	0.002" 0.05mm	0.004" 0.10mm	0.006" 0.15mm	0.008" 0.20mm	0.010" 0.25mm	0.012" 0.30mm	0.015" 0.38mm	ASTM D374
Voltage Breakdown	≥600	≥1200	≥1800	≥2500	≥2700	≥3000	≥4000	ASTM D149
Thermal Conductivity	0.8 W/mK							ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate	≥ 1200							ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs	≥ 1400							ASTM D3330
Holding Power (H/inch) @25℃	≥ 48 Hours							ASTM D3654
Holding Power (H/inch) @80℃	≥ 48 Hours							ASTM D3654

Product Specifications

Standard Thickness:

0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),

0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA^®800 Series rolls can be reinforced with glass fiber.

The TIA^® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
