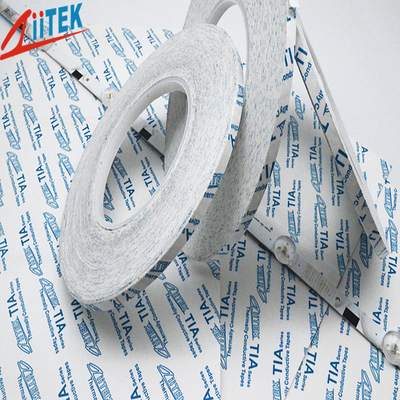

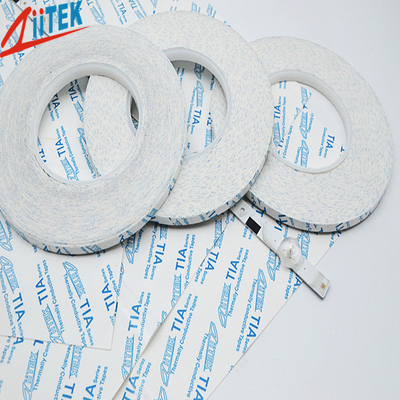

Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink

Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink
Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink
video play

Large Image :  Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA605P
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Packaging Details: 10RL/bag
Delivery Time: 2-3Work day
Supply Ability: 1000SQM/Day
Contact Now
Detailed Product Description
Product Name: Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink Key Words: Thermal Adhesive Tape
Backing Type: PET Adhesive Type: Acrylic Adhesive
Thickness: 0.127 Mm Voltage Breakdown: > 1500 Vac
180°Peel Adhesion: > 1400 G/inch (Steel After 24 Hrs) Color: White
Highlight:

High Thermal Conductivity Adhesive Tape

Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink



The TIA™600P Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able toreplace the method of lubricating grease and mechanical fixing.



TIA600P Series Datasheet-(E)-REV01.pdf

Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink 0

Features

> Thermal Conductivity: 0.8W/mK

> High performance,thermally conductive acrylic adhesive.

> Hihg bond strength to a variety of surfaces double sided pressure sensitive adhesive tape.

> Fire rating equate 94V0



Applications

> Mount heat sink onto BGA graphic processor or drive processor

> Mount heat spreader onto power converter PCB or onto motor control PCB

> High performance, thermally conductive acrylic adhesive

> Can be used instead of heat cure adhesive,screw mounting or clip mounting

> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light



Typical Properties of TIA™600P Series
Product Name TIATM605P TIATM608P TIATM610P Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type PET ********
Continuous Use Temp -45℃ to 120℃ ********
Composite Thickness 0.005"/ 0.127mm 0.008" / 0.203mm 0.010" / 0.254mm ASTM D374
Voltage Breakdown > 1000Vac > 1200Vac > 1500 Vac ASTM D149
180 Peel Adhesion >1200 g/inch (Steel, Immediate) PSTC-1
180 Peel Adhesion >1400 g/inch (Steel after 24hrs) PSTC-1
Holding Power 25℃/Hours > 48 Hours PSTC-7
Holding Power 80℃/Hours > 48 Hours PSTC-7
Thermal Conductivity 0.8W/mK ASTM D5470
Fire rating Equal to 94V0 ********


Standard Thicknesses:

0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm)

Consult the factory alternate thickness.



Standard Sizes:

40" x 100'(1016mm x 30.48M) Individual die cut shapes can be supplied.



Reinforcement:

TIA™600P series The coil can be filled with PET.


Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink 1

Company profile

With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.


Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat Transfer Thermal Tape For LED And Heat Sink 2

FAQ


Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
