Double Sided Ashesion Acrylic Tape 0.8W/MK Thermal Adhesive Tape For LED Lighting

Double Sided Ashesion Acrylic Tape 0.8W/MK Thermal Adhesive Tape For LED Lighting
Double Sided Ashesion Acrylic Tape 0.8W/MK Thermal Adhesive Tape For LED Lighting
video play

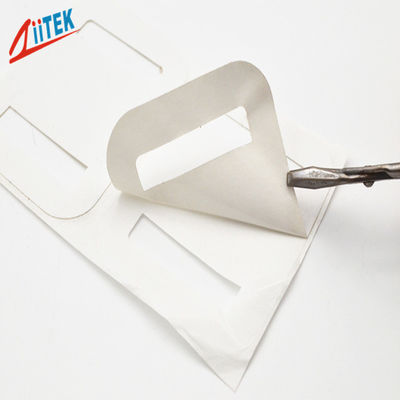

Large Image :  Double Sided Ashesion Acrylic Tape 0.8W/MK Thermal Adhesive Tape For LED Lighting

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA800
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Packaging Details: 10RL/bag
Delivery Time: 2-3Work day
Supply Ability: 1000SQM/Day
Contact Now
Detailed Product Description
Prodcuts Name: Double Sided Ashesion Acrylic Tape 0.8W/MK Thermal Adhesive Tape For LED Lighting Thickness: 0.1mmT~0.5mmT
Adhesive Type: Acrylic Adhesive Peel Adhesion: 1200 G/inch2
Thermal Conductivity: 0.9 W/mK Voltage Breakdown: > 3000 Vac
Highlight:

adhesive foam tape

,

acrylic adhesive tape

,

double sided adhesive thermal conductive tape

Double Sided Ashesion Acrylic Tape 0.8W/MK Thermal Adhesive Tape For LED Lighting



The TIA®800 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.


Features


> Thermal Conductivity: 0.8W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range



Applications



> LED Lights
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power Supply
> Waterproof LED Power Supply
> Piranha wroof and common lED module
> LED module for Channelletters
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight



Typical Properties of TIA®800 Series
Product Name TIA®802 TIA®804 TIA®806 TIA®808 TIA®810 TIA®812 TIA®815 Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ******
Continuous Use Temp -40℃ to 125℃ ******
Thickness 0.002" 0.05mm 0.004" 0.10mm 0.006" 0.15mm 0.008" 0.20mm 0.010" 0.25mm 0.012" 0.30mm 0.015" 0.38mm ASTM D374
Voltage Breakdown ≥600 ≥1200 ≥1800 ≥2500 ≥2700 ≥3000 ≥4000 ASTM D149
Thermal Conductivity 0.8 W/mK ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1200 ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs ≥ 1400 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 Hours ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 Hours ASTM D3654





Product Specifications

Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
