Double Side Thermal Conductive Tape For SMD LED Lamp With Acrylic Adhesive Type

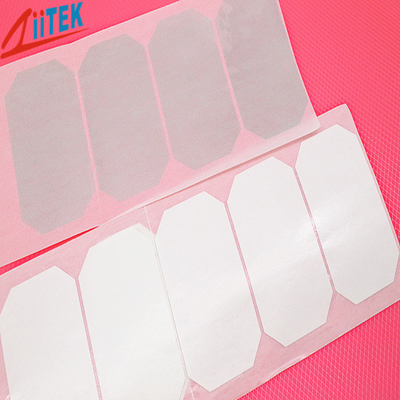

Large Image : Double Side Thermal Conductive Tape For SMD LED Lamp With Acrylic Adhesive Type

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIA810

Payment & Shipping Terms:

Minimum Order Quantity:	10SQM
Price:	0.1-10 USD/PCS
Packaging Details:	10RL/bag
Delivery Time:	2-3Work day
Payment Terms:	T/T
Supply Ability:	1000SQM/Day

Contact Now

Detailed Product Description

Products Name:	Double Side Thermal Conductive Tape For SMD LED Lamp With Acrylic Adhesive Type	Color:	White
Adhesive Type:	Acrylic Adhesive	Thermal Conductivity:	0.8 W/mK
Voltage Breakdown（V）:	≥2700	Keywords:	Double Side Thermal Tape
180° Peel Adhesion (gf/inch) Steel, Immediate:	≥1200	Application:	LED Lamp
Highlight:	Double Side Thermal Conductive Tape , Acrylic Adhesive Thermal Conductive Tape , SMD LED Thermal Conductive Tape

Double Side Thermal Conductive Tape For SMD LED Lamp With Acrylic Adhesive Type

The TIA^®810 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.

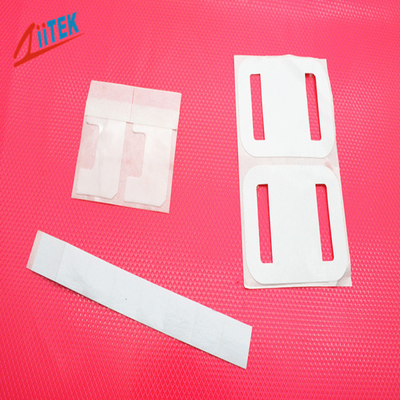

Double Side Thermal Conductive Tape For SMD LED Lamp With Acrylic Adhesive Type 0

Features

> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Mount heat sink onto BGA graphic processor or drive processor.

> Mount heat spreader onto power converter PCB or onto motor control.

> Can be used instead of heat cureadhesive screwmounting or clip mounting.

Typical Properties of TIA^®800 Series
Product Name	TIA^®802	TIA^®804	TIA^®806	TIA^®808	TIA^®810	TIA^®812	TIA^®815	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							******
Continuous Use Temp	-40℃ to 125℃							******
Thickness	0.002" 0.05mm	0.004" 0.10mm	0.006" 0.15mm	0.008" 0.20mm	0.010" 0.25mm	0.012" 0.30mm	0.015" 0.38mm	ASTM D374
Voltage Breakdown	≥600	≥1200	≥1800	≥2500	≥2700	≥3000	≥4000	ASTM D149
Thermal Conductivity	0.8 W/mK							ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate	≥ 1200							ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs	≥ 1400							ASTM D3330
Holding Power (H/inch) @25℃	≥ 48 Hours							ASTM D3654
Holding Power (H/inch) @80℃	≥ 48 Hours							ASTM D3654

Product Specifications

Standard Thickness:

0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),

0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA^®800 Series rolls can be reinforced with glass fiber.

The TIA^® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
