Product Details:
Payment & Shipping Terms:
|
| Thermal Conductivity& Compostion: | 1.8W/m-K | Color: | Grey |
|---|---|---|---|
| Branch Name: | ZIITEK | Hardness: | 20 SHORE00 |
| Application: | Wireless Routers | Thickness: | 2.5mmT |
| High Light: | 20 SHORE00 Silicone Pads,RoHS Compliant Silicone Pads,Mass Storage Devices Silicone Pads |
||

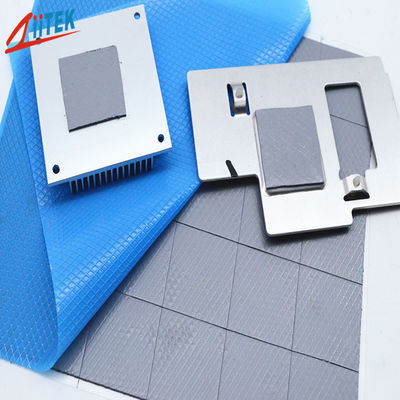

2.5mmT China company supplied silicone pads RoHS compliant For Mass storage devices 1.8W / MK
The TIF5100-18-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF5100-18-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
TIF500-18-11US Datasheet-REV02.pdf
Features:
> Good thermal conductive: 1.8W/mK
>Thickness:2.5mmT
>RoHS compliant
>UL recognized
>Outstanding thermal performance
>Fiberglass reinforced for puncture, shear and tear resistance
Applications:
>Mass storage devices
>Automotive electronics
>Set top boxes
>Micro heat pipe thermal solutions
>Automotive engine control units
>Telecommunication hardware
|
Typical Properties of TIF™5100-18-11US
|
||||
| Color |
Grey |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
| Construction & Compostion |
Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
| Specific Gravity | 2.8 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
| Heat Capacity | 1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
| Hardness | 20 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
|
Thickness |
2.5mmT |
*** |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
| Continuos Use Temp | -40 to 160℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
| Dielectric Constant | 4.2 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
| Fire rating | 94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
FAQ
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
