Product Details:
Payment & Shipping Terms:
|
| Thermal Conductivity: | 3.2W/m-K | Dielectric Breakdown Voltage: | >1500～>5500 VAC |
|---|---|---|---|
| Color: | BLUE | Specific Gravity: | 2.87 G/cc |
| Hardness, Shore 00: | 40 | Fire Rating: | UL94-V0 |
| High Light: | thermally conductive filler,thermal conductivity silicone,Thermal Gap Filler 3.2W/m-K |
||

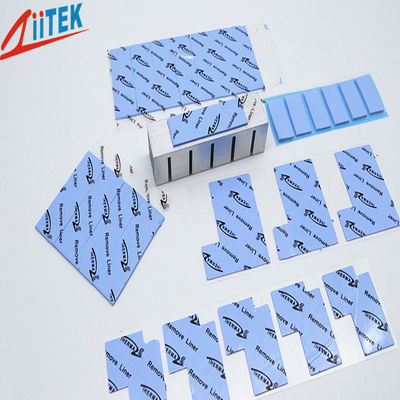

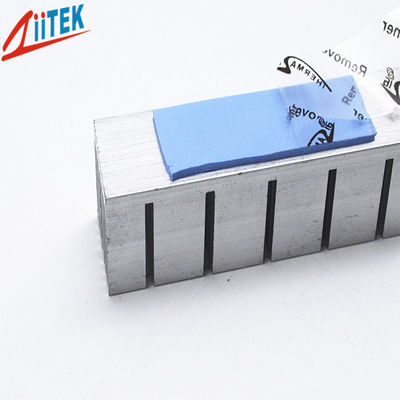

BLUE 3.2W/m-K Thermally Gap Filler Silicone pad with 40 SHORE00, Tem: -50 to 200℃
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
The TIF100-32-05S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features:
> Good thermal conductive: 3.2 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
|
Typical Properties of TIF 100-32-05S
|
||||
|
Color
|
BLUE |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.55 |
| 20mils / 0.508 mm |
0.82 |
|||
|
Specific Gravity
|
2.87 g/cc |
ASTM D297 |
30mils / 0.762 mm |
1.01 |
|
40mils / 1.016 mm |
1.11 |
|||
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
1.27 |
|
60mils / 1.524 mm |
1.45 |
|||
|
Hardness
|
40 (Shore 00) |
ASTM 2240 |
70mils / 1.778 mm |
1.61 |
|
80mils / 2.032 mm |
1.77 |
|||
| Tensile Strength |
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.91 |
|
100mils / 2.540 mm |
2.05 |
|||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
2.16 |
|
120mils / 3.048 mm |
2.29 |
|||
|
Dielectric Breakdown Voltage
|
>1500～>5500 VAC | ASTM D149 |
130mils / 3.302mm |
2.44 |
|
140mils / 3.556 mm |
2.56 |
|||
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
2.67 |
|
160mils / 4.064 mm |
2.77 |
|||
|
Volume Resistivity
|
4.0X10" Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
2.89 |
|
180mils / 4.572 mm |
2.98 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
3.05 |
|
200mils / 5.080 mm |
3.14 |
|||
|
Thermal conductivity
|
3.2W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
