Product Details:
Payment & Shipping Terms:
|
| Color: | Pale Yellow | Thermal Conductivity: | 1.25 W/m-K |
|---|---|---|---|
| Hardness: | 25 Shore 00 | Specific Gravity: | 1.75 G/cc |
| Dielectric Breakdown Voltage: | >10000 VAC | Fire Rating: | 94-V0 |
| High Light: | thermally conductive filler,high temperature phase change materials,Thermal Gap Filler 1.25 W/mK |
||

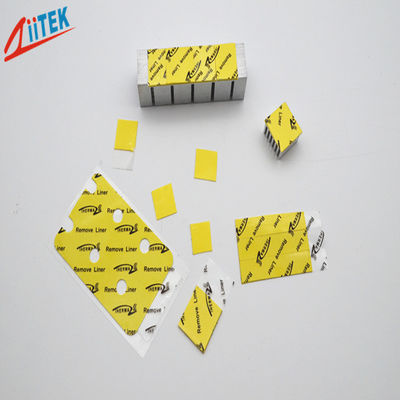

high thermal conductive mat Thermal Gap Filler For Heat Sinking Housing 1.25 W/mK
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF200-11E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -50℃~200℃ and meet the requirement of UL94V0.
Features:
> Good thermal conductive: 1.25 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
|
Typical Properties of TIF200-11E Series
|
||||
|
Color
|
Pale yellow | Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.57 |
| 20mils / 0.508 mm |
0.71 |
|||
|
Specific Gravity
|
1.75 g/cc |
ASTM D297 |
30mils / 0.762 mm |
0.88 |
|
40mils / 1.016 mm |
0.96 |
|||
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
1.11 |
|
60mils / 1.524 mm |
1.26 |
|||
|
Hardness
|
25 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
1.39 |
|
80mils / 2.032 mm |
1.54 |
|||
|
Tensile Strength
|
48 psi |
ASTM D412 |
90mils / 2.286 mm |
1.66 |
|
100mils / 2.540 mm |
1.78 |
|||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.87 |
|
120mils / 3.048 mm |
1.99 |
|||
| Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 |
130mils / 3.302mm |
2.12 |
|
140mils / 3.556 mm |
2.22 |
|||
|
Dielectric Constant
|
10.2 MHz | ASTM D150 |
150mils / 3.810 mm |
2.31 |
|
160mils / 4.064 mm |
2.41 |
|||
| Volume Resistivity | 7.3X10" Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
2.51 |
|
180mils / 4.572 mm |
2.58 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
2.64 |
|
200mils / 5.080 mm |
2.72 |
|||
|
Thermal conductivity
|
1.25 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
