Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A

Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A
Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A

Large Image :  Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TCP100-50-01A
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Packaging Details: 25KG/Bag
Supply Ability: 1000KG/day
Detailed Product Description
Shrinkage: 0.1% Thermal Conductivity In Plane: 5.0W/mK
Thermal Conductivity Throngh Plane: 15W/mK Heat Deflection Temperature: 150℃
Specific Gravity: 1.45g/cm3 Color: Black
Highlight:

thermal conductivity plastic

,

heat conducting plastic

,

Thermal Conductive Plastic for LED Lamp

Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature

Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A 0

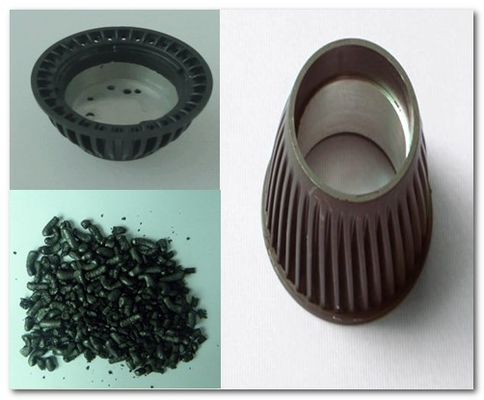

TCP™100-50-01A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

Application

TCP™100-50-01A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

>  Good thermal conductivity: 5.0W/mK
>  Excellent thermal conductivity compared to normal engineering plastics
>  Lighter than normal Aluminum housing 30% in weight
>  Excellent mould ability in injection moulding
>  Much higher production yield than normal Aluminum Die Casting
>  Excellent flexibility in designing final products such as housings.
>  UL94 V-0.



Typical Properties of TCPTM100-50-01A
Items Test method Unit Typical data
Physical Properties
Color Visual ***** Black
Melt index ISO 1133 g/10min 4
Specific Gravity ISO 1183 g/cm3 1.45
Shrinkage ISO 294 % 0.1
Mechanical Properties
Tensile Strength ISO 527 MPa 55
Flexural Strength ISO 178 MPa 80
Flexural Modulus ISO 178 MPa 15800
Impact Strength, notched ISO 180 kJ/m2 2.5~3.5
Electrical Properties

Dielectric Constant, 1MHz ASTM D150 ***** 4.5
Volume Resistivity ASTM D257 Ohm-meter 10000
Thermal Properties
Heat Deflection Temperature ASTM D648 150
Thermal Conductivity In Plane ASTM E1461 W/m-K 15
Thermal Conductivity Throngh Plane ASTM E1461 W/m-K 5.0
Flame retardancy Min. thick. 1.0mm Class V-0





a. Pre-Drying : 4 hrs. @ 80 by Hopper Dryer

b. Recommendable Process Temperature at molding machine
    - Nozzie : 280
    - Front : 270
    - Middle : 260
    - Rear : 250
c. Cycle time : 30sec

Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat Deflection Temperature TCP™100-50-01A 1
