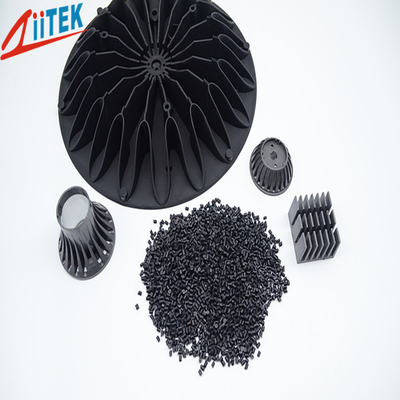

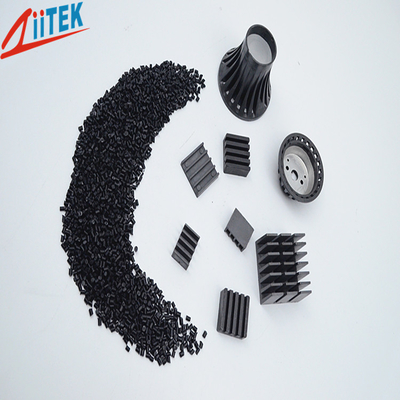

Black Heatsink Thermal Conductive Plastic with Shrinkage 0.3-0.5% and 1.8W Power

Black Heatsink Thermal Conductive Plastic with Shrinkage 0.3-0.5% and 1.8W Power
Black Heatsink Thermal Conductive Plastic with Shrinkage 0.3-0.5% and 1.8W Power
video play

Large Image :  Black Heatsink Thermal Conductive Plastic with Shrinkage 0.3-0.5% and 1.8W Power

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TCP200-15-02A
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Packaging Details: 25KG/Bag
Supply Ability: 1000KG/day
Contact Now
Detailed Product Description
Product Name: 1.8W Lighter Than Normal Aluminum Housing White Heatsink Thermal Conductive Plastic Color: Black
Keywords: Thermal Conductive Plastic Shrinkage: 0.3~0.5%
Thermal Conductivity In Plane: 1.5W/mK Specific Gravity: 1.45g/cm3
Heat Deflection Temperature: 180℃
Highlight:

Black Thermal Conductive Plastic

,

Heatsink Thermal Conductive Plastic

,

1.8W Thermal Conductive Plastic

1.8W Lighter Than Normal Aluminum Housing Black Heatsink Thermal Conductive Plastic


TCPTM200-15-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.


Application

TCPTM200-15-02A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

>  Good thermal conductivity: 1.5 W/mK
>  Excellent thermal conductivity compared to normal engineering plastics
>  Lighter than normal Aluminum housing 30% in weight
>  Excellent mould ability in injection moulding
>  Much higher production yield than normal Aluminum Die Casting
>  Excellent flexibility in designing final products such as housings.
>  UL94 V-0.

Typical Properties of TCPTM200-15-02A
Items Test method Unit Typical data
Physical Properties
Color Visual ***** Black
Melt index ISO 1133 g/10min 150
Specific Gravity ISO 1183 g/cm3 1.45
Shrinkage ISO 294 % 0.3~0.5
Mechanical Properties
Tensile Strength ISO 527 MPa 55
Flexural Strength ISO 178 MPa 70
Flexural Modulus ISO 178 MPa 9000
Impact Strength, notched ISO 180 kJ/m² 4.5
Electrical Properties

Dielectric Breakdown Voltage ASTM 149 KV/mm ＞5.5
Dielectric Constant, 1MHz ASTM D150 ***** 4.5
Volume Resistivity ASTM D257 Ohm-meter 8.0*10¹²
Thermal Properties
Heat Deflection Temperature ASTM D648 ℃ 180
Thermal Conductivity In Plane ASTM D648 ℃ 170
Thermal Conductivity Throngh Plane ASTM E1461 W/m-K 1.5
Flame retardancy Min. thick. 1.0mm Class V-0



Black Heatsink Thermal Conductive Plastic with Shrinkage 0.3-0.5% and 1.8W Power 0
