Thermal Conductive Nylon White Plastic Heat Conduction Material In Granules Pellets Form For LED Light Housing

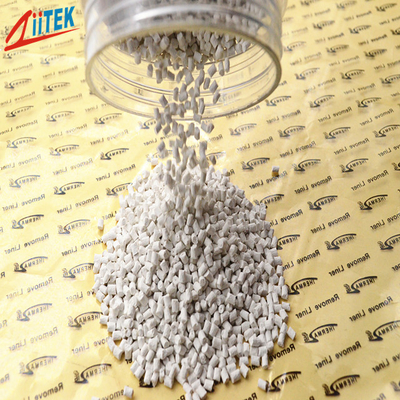

Large Image : Thermal Conductive Nylon White Plastic Heat Conduction Material In Granules Pellets Form For LED Light Housing

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TCP100-07-06A

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Packaging Details:	25KG/Bag
Supply Ability:	1000KG/day

Contact Now

Detailed Product Description

Features:	Lighter Than Normal Aluminum Housing	Product Name:	Thermal Conductive Nylon White Plastic Heat Conduction Material In Granules Pellets Form For LED Light Housing
Color:	White	Thermal Conductivity In Plane:	0.7W/mK
Specific Gravity:	1.5g/cm3	Heat Deflection Temperature:	180℃
Keywords:	Thermal Conductive Plastic	Shrinkage:	0.2~0.5%
Highlight:	White Plastic Heat Conduction Material , LED Light Housing Nylon Pellets , Thermal Conductive Nylon Pellets

Thermal Conductive Nylon White Plastic Heat Conduction Material In Granules Pellets Form For LED Light Housing

TCP^TM100-07-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP100-07-06A.pdf

Application

TCP^TM100-07-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

> Good thermal conductivity: 0.7W/mK
> Excellent thermal conductivity compared to normal engineering plastics.
> Lighter than normal Aluminum housing 30% in weight.
> Excellent mould ability in injection moulding.
> Much higher production yield than normal Aluminum Die Casting.
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.

Typical Properties of TCP^TM100-07-06A
Items	Test method	Unit	Typical data
Physical Properties
The material	******	*******	Nylon
Color	Visual	*****	White
Melt index	ASTM D1238	g/10min	80
Specific Gravity	ASTM D792	g/cm3	1.5
Shrinkage	ASTM D955	%	0.2~0.5
Mechanical Properties
Tensile Strength	ASTM D638	MPa	39.55
Flexural Strength	ASTM D790	MPa	45.5
Flexural Modulus	ASTM D638	MPa	9500
Impact Strength, notched	ASTM D256	kJ/m²	5.3
Electrical Properties

Dielectric Breakdown Voltage	ASTM D149	KV/mm	＞5.5
Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	8.0*10¹²
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	180
Thermal Conductivity Throngh Plane	ASTM D5470	W/m-K	0.7
Flame retardancy	Min. thick. 1.0mm	Class	V-0

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

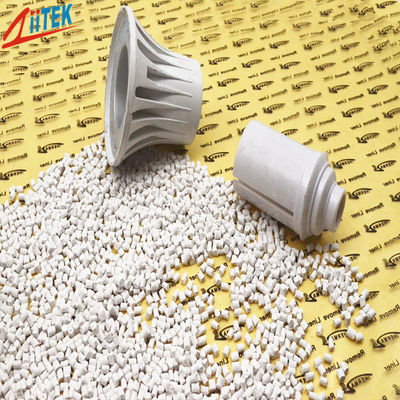

Thermal Conductive Nylon White Plastic Heat Conduction Material In Granules Pellets Form For LED Light Housing 2
