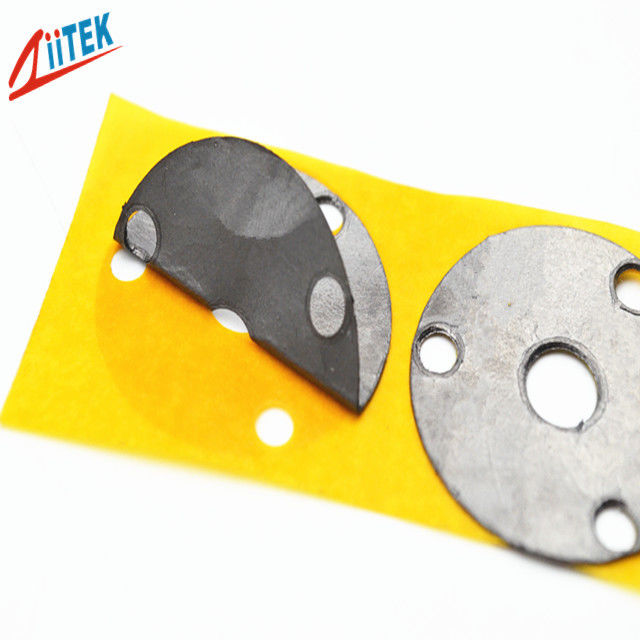

Low Thermal Resistance High Heat Insulation Materials , 10 W / mK Thin Graphite Sheet
The TIR™605-10 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.
Features
| Easy to assemble |
| Ultra-thin type |
| RoHS Compliant |
| Thermal Conductivity: 10 W/mK |
| Reduce hot spots and protect sensitive areas |
| Light weight |
| Flexible |
| Ease of manufacturing for high volume production |
Applications
| Power conversion equipment |
| Power semiconductors:To packages, MOSFETs & IGBTs |
| Audio and Video components |
| Automotive control units |
| Motor controllers |
| General high pressure interface |
| Power supplies and UPS |
| Motor and engine controllers |
| Televisions and consumer electronics |
| LED Power Supply |
| LED Controller |
| LED Lights |
| LED Ceilinglamp |
| Monitoring the Power Box |
| AD-DC Power Adapters |
| Rainproof LED Power Supply |
| Waterproof LED Power Supply |
| Piranha wroof and common LED module |
| LED module for Channelletters |
| SMD LED module |
| LED Flesible strip, LED bar |
| Typical Properties of TIR™605-10 Series | |||||
| Product Name | TIRTM605-10 | Test Method | |||
| Materials | Natural graphite | ||||
| Color | Black | Visual | |||
| Composite Thickness (in/mm) | 0.005"(0.127mm) | ||||
| Thickness Tolerance | +/- 10% | ||||
| Density | 2.2 g/cc | ||||
| Hardness | 85 Shore A | ASTM D2240 | |||
| Thermal conductivity (Z Axis Direction) | 10.0W/m-K | ASTM D5470 | |||
| Thermal conductivity (X-Y Axis Direction) | 150W/m-K | ASTM D5470 | |||
| Tensile Strength | 715psi (4900kpa) | ASTM D5470 | |||
| Thermal Impedance @100psi | 0.037 in²℃/W | ASTM D5470 | |||
| Operating Temperature | -200℃ ～300℃ | ||||
Standard Thicknesses
0.004"(0.102mm) 0.005"(0.127mm) 0.006"(0.152mm)
0.008"(0.203mm) 0.010"(0.254mm) 0.012"(0.304mm)
0.020"(0.508mm)
Consult the factory alternate thickness.
Standard Sizes
18" x 18"(457mm x 457mm) 18" x 300'(457mm x 91.4M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Insulation
Request plastic on one side with "P1" suffix
