Ultra-Low Thermal Resistance 9W/MK Carbon Fibre Based Thermal Pad For 5G Communication Equipment

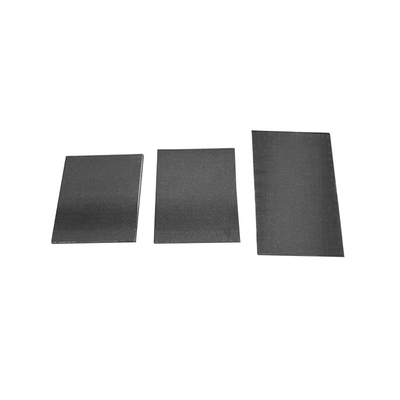

Large Image : Ultra-Low Thermal Resistance 9W/MK Carbon Fibre Based Thermal Pad For 5G Communication Equipment

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TS-TIR700-09

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Product Name:	Ultra-Low Thermal Resistance 9W/MK Carbon Fibre Based Thermal Pad For 5G Communication Equipment	Color:	Gray
Density:	2.1g/cc	Thermal Conductivity (Z Axis Direction):	9.0W/m-K
Hardness:	55±10 Shore 00	Material:	Carbon Fiber Filled Silicone
Application:	5G Communication Equipment	Keywords:	Thermal Pad
Highlight:	Ultra-Low Thermal Resistance Thermal Pad , 5G Communication Equipment Thermal Pad , Carbon Fibre Based Thermal Pad

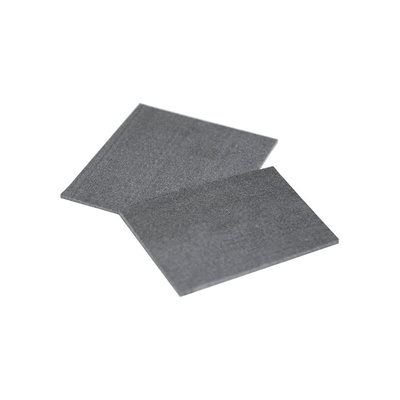

Ultra-Low Thermal Resistance 9W/MK Carbon Fibre Based Thermal Pad For 5G Communication Equipment

TS-TIR^®700-09 Series series is a high-performance carbon-based thermal pad that combines highly thermally conductive carbon fiber with polymer silicone materials. Utilizing advanced manufacturing processes to precisely distribute thermal pathways, it achievese xceptional thermal conductivity, effectively reducing interfacial thermal resistance and enhancing heat dissipation efficiency. With its ultra-thin, lightweight design and mechanical flexibility, it is suitable for 5G equipment, high-performance chips, and other high heat flux applications.

Feature

>Good thermal conductivity 9w/mK

>Ultra-low thermal resistance
>works under low pressure.

>Non-insulating material

>Non-adhesive surface

Application

>Between chips and heat dissipation modules

>5G communication equipment
>Optoelectronics industry

>wearable devices

Typical Properties of TIR^®700-09 series
Product Name	TIR^®700-09	Test Method
Colour	Gray	Visual
Construction	Carbon fiber filled silicone	*****
Thickness range	0.04"~0.20"(1.0~5.0 mm)	ASTM D374
Hardness	55±10 Shore A	ASTM D2240
Density	2.1 g/cc	ASTM D792
Operation Temperature	-40℃~ 200℃	******
Thermal impedance	9.0W/m-K	ASTM D5470
Specific heat capacity (J/g ℃)	0.93	ASTM E1269 @25℃
Flame Rating	V-0	UL94
RoHS	Compliant	IEC62321

Product Specification
Standard Thickness:0.04" (1.0mm), 0.06" (1.5mm),0.08" (2.0mm),0.10" (2.5mm),0.12" (3.0mm)

Standard Size: 1.9"x 1.97"(50.0mm x 50.0mm)

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
