0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment

0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment
0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment
0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment 0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment 0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment 0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment 0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment

Large Image :  0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA808FG
Document: TIA800FG_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Price: Negotiation
Packaging Details: 10RL/bag
Delivery Time: 3-7 Work days
Payment Terms: T/T
Supply Ability: 1000SQM/Day
Contact Now

0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment

Description
Products Name: 0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment Thickness: Various Sizes
Color: White Adhesive Type: Acrylic Adhesive
Backing Type: Fiberglass Thermal Conductivity: 0.8W/mK
Recommended Operating Temperature(℃): -40~125 Keywords: Thermal Conductive Double Side Tape
Highlight:

adhesive foam tape

,

thermally conductive adhesive tape

,

1.2 W / mK double sided tape

0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment


The TIA®800FG Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease, simplify assembly processes, improve product reliability, and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.


Features

> Thermal Conductivity: 1.2 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting

Typical Properties of  TIA®800FG Serie
Product Name TIA®808FG Test Method
Color White Visual
Adhesive Type Acrylic Adhesive -
Backing Type Fiberglass -
Recommended Operating Temperature(℃) -40 ~ 125 -
Composite Thickness(inch/mm) 0.008/0.20 ASTM D374
Voltage Breakdown(V)) ≥3500 ASTM D149
Thermal Conductivity(W/mK)  0.8  ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1000  ASTM D3330
180° PeelA dhesion  (gf/inch) Steel, Steel 24 hrs ≥ 1200 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 ASTM D3654

Product Specifications

Standard Thickness: 0.005" (0.13 mm),0.006" (0.15 mm), 0.008" (0.20 mm), 0.010" (0.25 mm), 0.012" (0.30 mm), 0.015" (0.38 mm), 0.020" (0.51 mm),

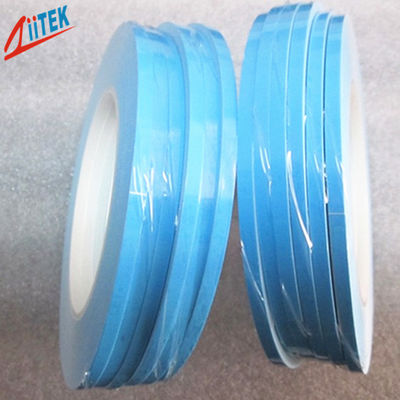

Standard Size: 16" × 100" (406 mm × 30.48 m)
Reinforcing Carrier: TIA®800FG Series rolls can be reinforced with fiberglass.

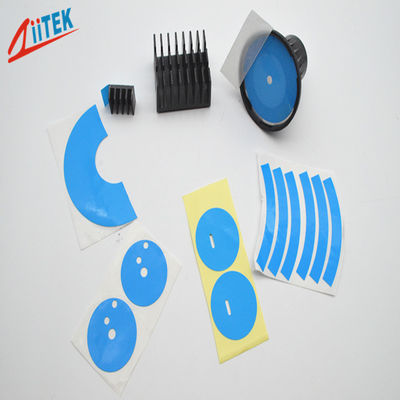

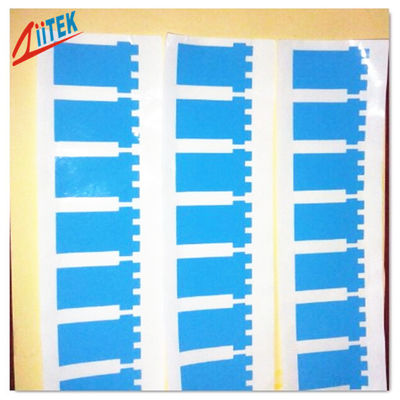

The TIA® Series can be provided with die-cutting into various shapes.For different thicknesses or more information about thermally conductive materials, please contact our company.

0.8W/mK Good Thermal Conductivity Efficiency Thermal Conductive Double Side Tape For Communication Equipment

Company Profile

Dongguan Ziitek Electronic Material and Technology Co., Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable. Mainly engaged in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. The core explosive heating plate is widely recognized by the market. Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.


Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.


Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
