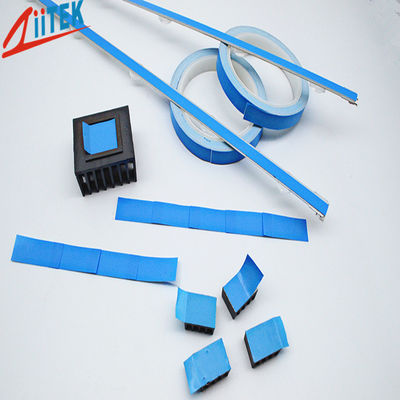

Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module

Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module
Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module
Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module

Large Image :  Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA800FG
Document: TIA800FG_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Price: Negotiation
Packaging Details: 10RL/bag
Delivery Time: 3-7 Work days
Payment Terms: T/T
Supply Ability: 1000SQM/Day
Contact Now

Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module

Description
Products Name: Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape For SMD LED Module Color: White
Adhesive Type: Acrylic Adhesive Backing Type: Fiberglass
180° Peel Adhesion (gf/inch) Steel, Immediate: ≥1000 Thermal Conductivity: 0.8 W/mK
Thickness(inch/mm): Various Sizes Keywords: Double Side Thermal Conductive Acrylic Tape
Application: SMD LED Module
Highlight:

adhesive foam tape

,

acrylic adhesive tape

,

High Bond Strength acrylic adhesive tape

Heat Sink Acrylic Based Glue - Highly Double Side Thermal Conductive Acrylic Tape For SMD LED Module
The TIA®800FG Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease, simplify assembly processes, improve product reliability, and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.
TIA 800FG Series Thermal Conductive Acrylic Tape
Key Features
Thermal Conductivity: 0.8 W/mK
High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
High performance, thermally conductive acrylic adhesive
Applications
  • Set top boxes
  • Audio and video components
  • IT infrastructure
  • GPS navigation and other portable devices
  • CD-Rom, DVD-Rom cooling
  • LED Power Supply
Typical Properties of TIA®800FG Series
Product Name TIA®805FG TIA®806FG TIA®808FG TIA®810FG TIA®812FG TIA®815FG TIA®820FG Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type Fiberglass ********
Recommended Operating Temperature(℃) -40 ~ 125 ********
Composite Thickness(inch/mm) 0.005 / 0.13 0.006 / 0.15 0.008 / 0.20 0.010 / 0.25 0.012 / 0.30 0.015 / 0.38 0.020 / 0.51 ASTM D374
Voltage Breakdown(V) ≥2500 ≥3000 ≥3500 ≥4000 ≥4200 ≥4500 ≥5000 ASTM D149
Thermal Conductivity(W/mK) 0.8 ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1000 ASTM D3330
180° Peel Adhesion (gf/inch) Steel, Steel 24 hrs ≥ 1200 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 ASTM D3654
Product Specifications
Standard Thickness: 0.005" (0.13 mm), 0.006" (0.15 mm), 0.008" (0.20 mm), 0.010" (0.25 mm), 0.012" (0.30 mm), 0.015" (0.38 mm), 0.020" (0.51 mm)
Standard Size: 16" × 100" (406 mm × 30.48 m)
Reinforcing Carrier: TIA®800FG Series rolls can be reinforced with fiberglass.
The TIA® Series can be provided with die-cutting into various shapes. For different thicknesses or more information about thermally conductive materials, please contact our company.
Thermal Conductive Materials Manufacturing Process
Independent R&D Team
Our dedicated research and development team continuously works on improving our thermal conductive materials and developing new solutions for evolving industry needs.
Frequently Asked Questions
How do I place an order?
1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us. This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
Are you trading company or manufacturer?
We are manufacturer in China.
How long is your delivery time?
Generally it is 3-7 work days if the goods are in stock. Or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Do you provide samples? Is it free or extra cost?
Yes, we could offer samples free of charge.
