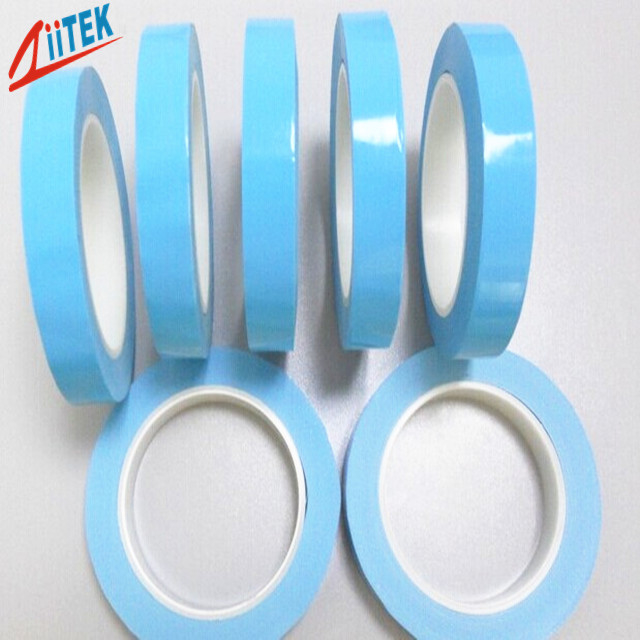

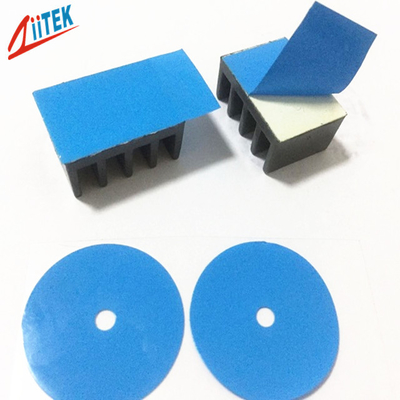

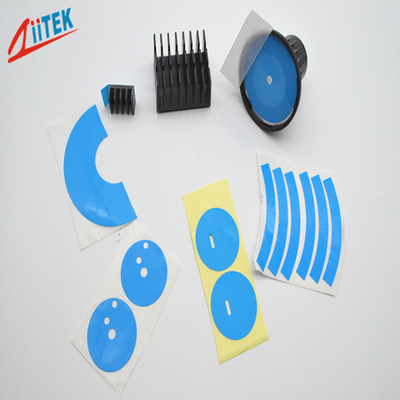

Double Sided Thermal Adhesive Tape For Heatsink

Double Sided Thermal Adhesive Tape For Heatsink
Double Sided Thermal Adhesive Tape For Heatsink
Double Sided Thermal Adhesive Tape For Heatsink Double Sided Thermal Adhesive Tape For Heatsink Double Sided Thermal Adhesive Tape For Heatsink Double Sided Thermal Adhesive Tape For Heatsink

Large Image :  Double Sided Thermal Adhesive Tape For Heatsink

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA800FG
Document: TIA800FG_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Price: Negotiation
Packaging Details: 10RL/bag
Delivery Time: 3-7 Work days
Payment Terms: T/T
Supply Ability: 1000SQM/Day
Contact Now

Double Sided Thermal Adhesive Tape For Heatsink

Description
Products Name: Double Sided Thermal Adhesive Tape For Heatsink Keywords: Thermal Adhesive Tape
Color: White Adhesive Type: Acrylic Adhesive
Backing Type: Fiberglass Recommended Operating Temperature (°C): -40~125
Thermal Conductivity: 0.8 W/mK Holding Power (H/inch) @25°C: ≥48
Application: Heatsink Sample: Free
Highlight:

adhesive foam tape

,

acrylic adhesive tape

,

LED Heat Sink High Adhesive Tape

Double Sided Thermal Adhesive Tape For Heatsink
Product Overview

The TIA®800FG Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease, simplify assembly processes, improve product reliability, and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.

TIA 800FG Series Thermal Adhesive Tape
Key Features
  • High bonding strength
  • Good thermal conductivity efficiency
  • Easy to apply and can be die-cut into custom sizes
  • Stable operation over a wide temperature range
Applications
  • Mount heat sink onto BGA graphic processor or drive processor
  • Mount heat spreader onto power converter PCB or onto motor control PCB
  • High performance, thermally conductive acrylic adhesive
  • Can be used instead of heat cure adhesive, screw mounting or clip mounting
  • LED module
  • Power device
  • Consumer electronics
  • Communication equipment
Technical Specifications of TIA®800FG Series
Product Name TIA®805FG TIA®806FG TIA®808FG TIA®810FG TIA®812FG TIA®815FG TIA®820FG Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type Fiberglass ********
Recommended Operating Temperature(℃) -40 ~ 125 ********
Composite Thickness(inch/mm) 0.005/0.13 0.006/0.15 0.008/0.20 0.010/0.25 0.012/0.30 0.015/0.38 0.020/0.51 ASTM D374
Voltage Breakdown(V) ≥2500 ≥3000 ≥3500 ≥4000 ≥4200 ≥4500 ≥5000 ASTM D149
Thermal Conductivity(W/mK) 0.8 ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1000 ASTM D3330
180° Peel Adhesion (gf/inch) Steel, Steel 24 hrs ≥ 1200 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 ASTM D3654
Product Specifications

Standard Thickness: 0.005" (0.13 mm), 0.006" (0.15 mm), 0.008" (0.20 mm), 0.010" (0.25 mm), 0.012" (0.30 mm), 0.015" (0.38 mm), 0.020" (0.51 mm)

Standard Size: 16" × 100" (406 mm × 30.48 m)

Reinforcing Carrier: TIA®800FG Series rolls can be reinforced with fiberglass.

The TIA® Series can be provided with die-cutting into various shapes. For different thicknesses or more information about thermally conductive materials, please contact our company.

TIA Series Thermal Materials Application
Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). We have rich experiences in this field which can support you with the latest, most effective and one-step thermal management solutions. We have many advanced production equipment, full test equipment and fully automatic coating production lines which can support the production of high performance thermal silicone pad, thermal graphite sheet/film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications
  • ISO9001:2015
  • ISO14001:2004
  • IATF16949:2016
  • IECQ QC 080000:2017
  • UL
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock, or it is 7-10 work days if the goods are not in stock, according to quantity.
Q: Do you provide samples? Is it free or extra cost?
A: Yes, we could offer samples free of charge
