Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service

Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service
Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service
Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service

Large Image :  Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-15-01E
Document: TIF100-15-01E_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 10000/day
Contact Now

Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service

Description
Products Name: Silicone Thermal Pad With 1.5W/mK Thermal Conductivity Designed For Heat Management In Electronics And AI Service Keywords: Silicone Thermal Pads
Continuos Use Temp: -40℃ To 200℃ Density: 2.3g/cm³
Hardness: 65/35 Shore 00 Color: Black
Thermal Conductivity: 1.5W/m-K Thickness: 0.010~0.200inch / 0.25~5.00mmT
Construction: Ceramic Filled Silicone Elastomer Application: In Electronics And AI Service
Highlight:

Silicone thermal pad for electronics

,

1.5W/mK thermal conductivity pad

,

AI service thermal gap filler

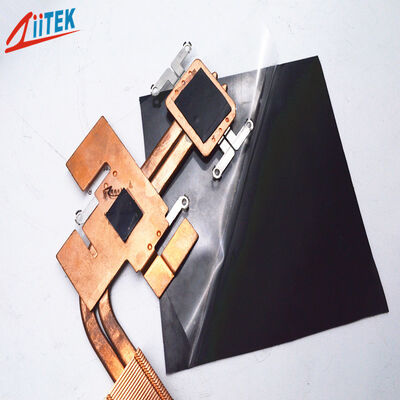

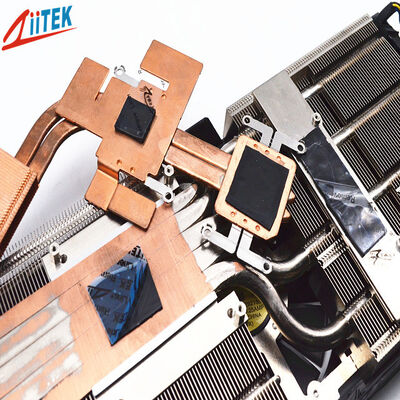

Silicone Thermal Pad With 1.5W/mK Thermal Conductivity
Product Overview
The TIF®100-15-01E Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Key Features
  • Good thermal conductivity
  • Moldability for complex parts
  • Soft and compressible for low stress applications
  • Naturally tacky - no additional adhesive coating required
  • Available in various thicknesses
Applications
  • Routers
  • Medical Devices
  • Audio electronic products
  • Unmanned aerial vehicle (UAV)
  • Photovoltaic systems
  • Signal communication equipment
  • New energy vehicles
  • Motherboard chips
  • Radiators
  • AI Processors & AI Servers
Technical Specifications of TIF®100-15-01E Series
Property Value Test Method
Color Black Visual
Construction & Composition Ceramic filled silicone elastomer *******
Density 2.3g/cm³ ASTM D792
Thickness range 0.010~0.200inch / 0.25~5.0mm ASTM D374
Hardness 65/35 Shore 00 ASTM 2240
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Recommended Operating Temp -40 ~200℃ Ziitek Test Method
Dielectric Constant @1MHz 4.7 ASTM D150
Volume Resistivity ＞1.0×10¹² Ohm-meter ASTM D257
Fire rating V-0 UL94 (E331100)
Thermal conductivity 1.5W/mK ASTM D5470
Product Details
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm)
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
TIF®100-15-01E Series Silicone Thermal Pad
Packaging & Lead Time
Packaging Details:
  • PET film or foam protection
  • Paper card separation between layers
  • Export carton packaging
  • Customized packaging available per customer requirements
Lead Time: For quantities of 5000 pieces - estimated time to be negotiated
