Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

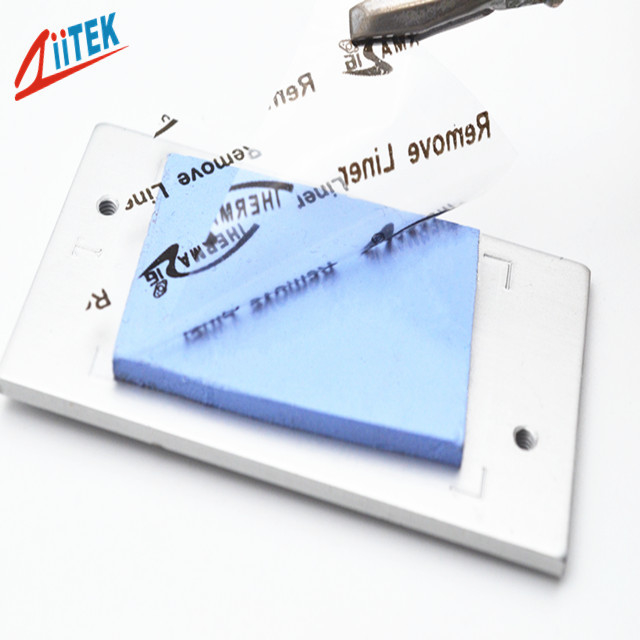

Large Image :  Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF560BS
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Products Name: Premium Soft Silicone Thermal Pad For Advanced Cooling Needs Application: Advanced Cooling Needs
Continuos Use Temp: -45℃ To 200℃ Keywords: Soft Silicone Thermal Pad
Density: 3.0g/cc Hardness: 13 Shore 00
Color: Blue Thermal Conductivity& Compostion: 2.6W/m-K
Thickness: 1.5mmT Construction: Ceramic Filled Silicone Elastomer

Premium Soft Silicone Thermal Pad For Advanced Cooling Needs​



Products Description



TIFTM560BS use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features:



> Good thermal conductive : 2.6W/mK
> Naturally tacky needing no further adhesive coating

> Available in varies thicknesses
> Broad range of hardnesses available

> Soft and compressible for low stress applications



Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU



Key attributes



Typical Properties of TIFTM560BS
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Density 3.0g/cc ASTM D297
Thickness range 1.5mmT ASTM C351
Hardness 13 Shore 00 ASTM 2240
Dielectric Breakdown Voltage >5500 VAC ASTM D412
Operating Temp -45 ~200℃ *******
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity ≥2.0X1013Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 2.6W/mK ASTM D5470



Product Specifications
Standard Thickness:

0.02 to 0.20 (0.50 to 5.00 mm) with increments of 0.01 (0.25 mm).



Standard Size:

8"X16"(203 mm×406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment). DC1 (Single-sided hardening).

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass)provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25 to 0.50 mm).
The TIF series is available in custom shapes and various forms.

For other thicknesses or moreinformation. please contact us.



Details Images

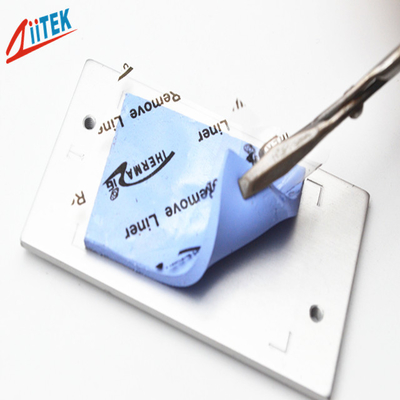

Premium Soft Silicone Thermal Pad For Advanced Cooling Needs 0
Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
