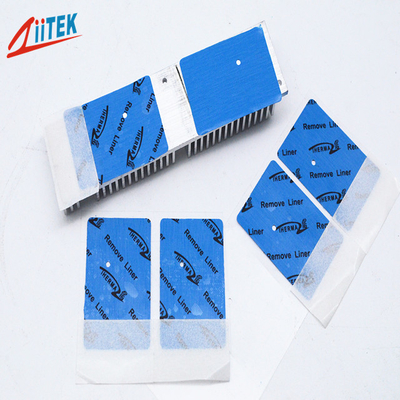

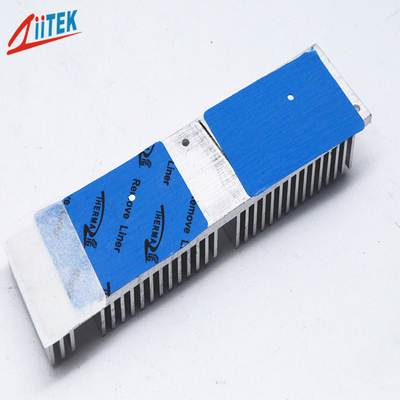

5G Phone Battery Thermal Conductive Silicone Pad , 0.5-5.0mm Thermal Conductive Gap Filler

5G Phone Battery Thermal Conductive Silicone Pad , 0.5-5.0mm Thermal Conductive Gap Filler​

 TIF^®500BS is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.

Features:

> Good thermal conductive : 2.6W/mK
> Naturally tacky needing no further adhesive coating

> Soft and Compressible for low stress applications
> Available in varies thickness

Applications

> Cooling components to the
> chassis of frame
> Set Top Box
> Car Battery & Power Supply
> Charging Pile
> LED TV/ Lighting
> Graphics Card Thermal Module

Product Specifications
Standard Thickness:

0.010 to 0.20 (0.25 to 5.00 mm) with increments of 0.01 (0.25 mm).

Standard Size:

16"X16"(406 mm×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment). DC1 (Single-sided hardening).

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or moreinformation. please contact us.

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
