Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

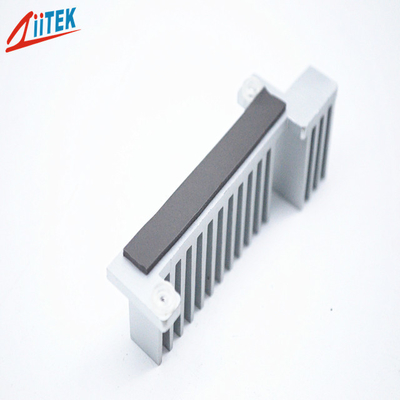

Large Image :  Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF540-20-11US
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day
Detailed Product Description
Products Name: Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad Thermal Conductivity& Compostion: 2.0W/m-K
Continuos Use Temp: -40℃ To 200℃ Construction: Ceramic Filled Silicone Elastomer
Specific Gravity: 2.5g/cc Keywords: Thermal Silicone Pad
Hardness: 20 Shore 00 Color: Dark Gray
Thickness: 1.0mmT Application: LED CPU GPU MOS Laptop
Highlight:

Gpu Laptop Thermal Pad

,

High Temperature Resistant Thermal Pad

,

Thermal Insulated Gap Pad

Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad



TIF®540-20-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely_sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.



Features


> Excellent thermal conductivity 2.0W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications



> Cooling components to the chassis of frame
> CPU and GPU processors and other chipsets
> High-performance computing (HPC)

> Industrial equipment
> Network communication devices

> New energy vehicles
> LED CPU GPU MOS

> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices



Typical Properties of TIF®500-20-11US Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.5 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 2.0 W/m-K ASTM D5470
2.0 W/m-K ISO22007



Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad 0
Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
