High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment

High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

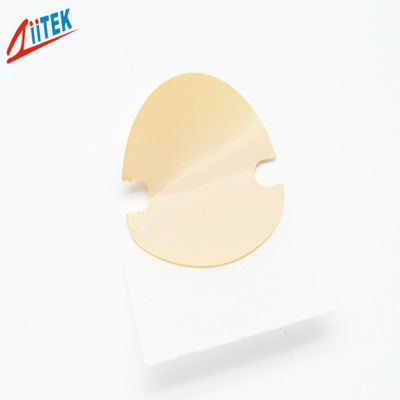

TIC^®800D Series is a high thermal conductivity and high dielectric constant insulating pad. lt consists of a polyimide film substrate coated with a low-melting-point phase change material filled with ceramic blend. At 50 C, the material surface begins to soften and flow, effectively filling microscopic surface irregularities between the heat sink and the integrated circuit board, thereby reducing thermal resistance and enhancing heat transfer efficiency.

Features
> Highly compliant surfacewith high thermal conductivity

> High dielectric strength
> Low thermal resistance with highvoltage isolation
> Resistant to tears and punctures

Applications
> Power semiconductors, MOSFETs,and IGBTs
> Audio and video components

> Automotive control devices

> Electric motor control equipment

Product Specification

Standard Thickness:

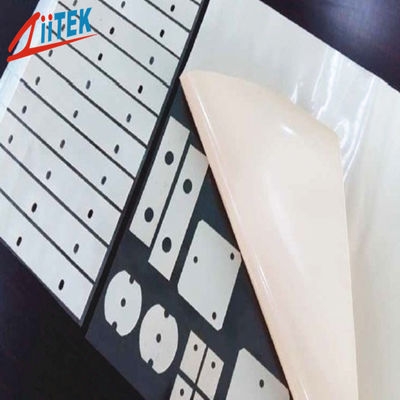

0.005" (0.127 mm). Individual die-cut shapes and custom thickness can be supplied. Please contact us for confirming.



Standard sizes:
10"x 100'(254 mm x 30 m), individual die cut shapes can be supplied.



Peressure Sensitive Adhesive:
Not applicable to TIC800D series products.



Reinforcement:
TIC800D series is reinforced with polyimide film.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
