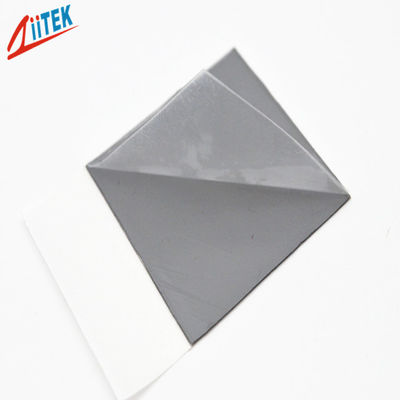

Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery

Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery
Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery

Large Image :  Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIC800H
Payment & Shipping Terms:
Minimum Order Quantity: 1000PC
Price: USD 0.03PCS
Packaging Details: 1000PCS/bag
Delivery Time: 2-3Works
Supply Ability: 100000PCS/DAY
Detailed Product Description
Products Name: Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery Thickness: 0.008inch/ 0.200mm
Color: Gray Thermal Conductivity: 2.7 W/mK
Thermal Lmpedance @50 Psi: 0.013℃-cm²/W Recommend Operating Temperature: -40℃~125℃
Phase Change Softening Temperature: 50℃~60℃ Keywords: Phase Changing Materials
Highlight:

Thermal Interface Material Phase Change Sheet

,

Battery Thermal Interface Material

Low-Melting Thermal Interface Material Phase Change Sheet For Power Supply And Vehicle Storage Battery



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



The TIC®800H series is a high-performance,cost-effective thermal interface material featuring a unique grain-oriented structure that enables precise conformity to device surfaces, thereby enhancing the thermal conduction path and transfer efficiency. When the temperature exceeds its phase transition point of 50°C, the material softens and undergoes phase change,effectively filling microscopic and uneven gaps between components to form a low thermal resistance interface, significantly improving heat dissipation performance.

Features
> Low thermal resistance
> Self-adhesive with no need for additional surface adhesives
> Low-pressure application environment


Applications
> Power conversion equipment

> Power supply and vehicle storage battery
> Large communication switch hardware

> LED TV,Lighting
> Laptop computer

Typical Properties of TIC®800H Series
Product Name TIC®808H TIC®810H TIC®812H Test Method
Color Gray Visual
Thickness 0.008" 0.010" 0.012" ASTM D374
(0.200mm) (0.250mm) (0.300mm)
Density 2.7g/cc ASTM D792
Recommended Operating Temperature (℃) -40℃~125℃ Ziitek Test Method
Phase Change Softening Temperature(℃) 50℃~60℃ Ziitek Test Method
Thermal Conductivity 7.5 W/mK ASTM D5470
Thermal Impedance(℃-cm²/W) @10 psi 0.018 0.019 0.021 ASTM D5470
Thermal Impedance(℃-cm²/W) @50 psi 0.013 0.014 0.015 ASTM D5470



Standard Thickness:0.008(0.20 mm),0.010(0.25 mm),0.012"(0.30 mm).

For other thickness options, please contact us.



Standard Size: 10”x 16"(254 mm x 406 mm).
Pressure-Sensitive Adhesive: lt is not applicable to TIC®800H series products.Reinforcement Material: No reinforcementmaterial required.
