Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU

Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU
Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU
Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU

Large Image :  Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIC808H
Document: TIC800H_Data Sheet .pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiation
Packaging Details: 1000pcs/bay
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now

Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU

Description
Product Name: Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU Color: Gray
Thermal Conductivity: 7.5W/mK Phase Change Softening Temperature(℃）: 50℃~60℃
Density: 2.7g/cm³ Recommend Operating Temperature: -40℃～125℃
Keywords: Phase Changing Materials Application: Server CPU

Excellent Thermal Conductivity Thermal Conductive Phase Change Material For Server CPU

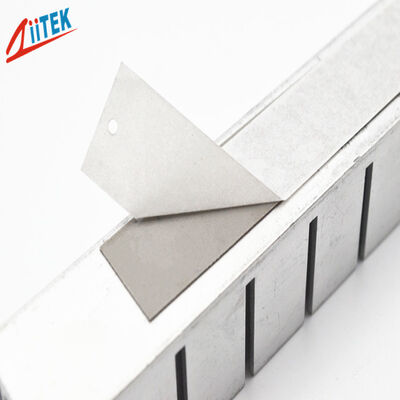

The TIC®800H Series is an ultra-high thermal conductivity phase change material with a unique grain orientation structure. This structure achieves directional optimization of the heat flow path through micro ordered arrangement, significantly doubling the macroscopic thermal conductivity efficiency. When the temperature exceeds the phase transition point of 50℃, the material can soften and infiltrate the interface, filling micro irregular gaps, and ultimately forming a heat conduction channel with extremely low thermal resistance at the contact surface, improving the eficiency of the heat dissipation system.


Features


> Excellent thermal conductivity
> Good process compatibility
> Soft surface and self adhesive
> Low steady-state thermal resistance


Applications


> Power conversion equipment
> Payload processor
> Server CPU
> Game graphics card GPU chip heat dissipation


Typical Properties of TIC®800H Series
Product Name TIC®808H TIC®810H TIC®812H Testing standards
Color Gray Visual

Thickness(inch/mm)

 0.008" 0.010" 0.012" ASTM D374
(0.20mm) (0.25mm) (0.30mm)
Density(g/cm³) 2.7 ASTM D792
Recommended Operating
Temperature (℃)		 -40～125 -
Phase Change Softening Temperature(℃) 50~60 -
Thermal conductivity 7.5 W/mK ASTM D5470

Thermal lmpedance

(℃-in²/W)@10 psi

 0.018 0.019 0.021 ASTM D5470

Thermal lmpedance

(℃-in²/W)@50 psi

 0.013 0.014 0.015 ASTM D5470


Product Specifications
Standard Thickness:0.008" (0.20 mm),0.010" (0.25 mm),0.012" (0.30 mm)
Standard Size: 10" x 16" (254 mm x 406 mm)


TIC®series can be molded into different shapes to provide. If you need different thicknesses or would like to learn more about thermal conductive materials, please contact our company.

Excellent Thermal Conductivity 7.5W/mK Thermal Conductive Phase Change Material For Server CPU 0

Company Profile


Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


Our services


Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
