5.0W/Mk High Reliability Pcm Phase Change Material For CPU And GPU

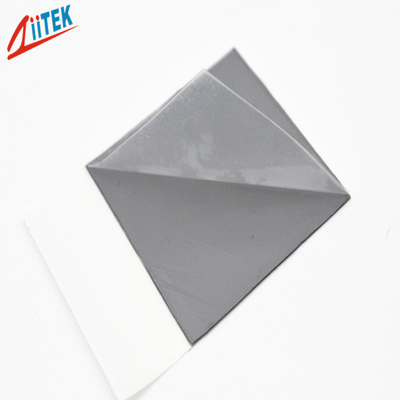

Large Image : 5.0W/Mk High Reliability Pcm Phase Change Material For CPU And GPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIC™805G

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	negotiation
Packaging Details:	1000pcs/bay
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Product Name:	5.0W/Mk High Reliability Pcm Phase Change Material For CPU And GPU	Color:	Gray
Thermal Conductivity:	5.0W/mK	Phase Transition Temperature:	-40℃~125℃
Thickness:	0.127mm	Density:	2.6g/cc
Keywords:	Phase Change Thermal Pad
Highlight:	CPU And GPU Phase Change Material , High Reliability Phase Change Material , 5.0W/Mk Phase Change Material

5.0W/Mk High Reliability Pcm Phase Change Material For CPU And GPU

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

The TIC™800G Series is low melting point thermal interface material. At 50℃, The TIC™800G Series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance. The TIC™800G Series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

The TIC™800G Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

TIC800G Series Datasheet-(E)-REV01.pdf

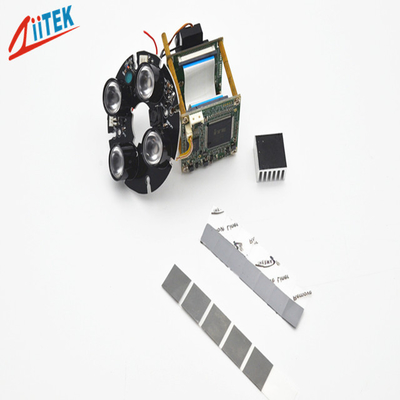

5.0W/Mk High Reliability Pcm Phase Change Material For CPU And GPU 0

Features

> 0.014℃-in² /W thermal resistance
> Naturally tacky at room temperature, no adhesive required
> No heat sink preheating required

Applications

> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs

Typical Properties of TIC^TM800G Series
Product Name	TIC^TM805G	TIC^TM808G	TIC^TM810G	TIC^TM812G	Test Method
Color	Gray	Gray	Gray	Gray	Visual
Thickness	0.005"	0.008"	0.010"	0.012"	****
Thickness	(0.126mm)	(0.203mm)	(0.254mm)	(0.305mm)	****
Thickness Tolerance	±0.0005''	±0.0008''	±0.0010''	±0.0012''	****
Thickness Tolerance	(±0.127mm)	(±0.203mm)	(±0.0254mm)	(±0.0305mm)	****
Density	2.6g/cc				Helium Pycnometer
Temperature range	-25℃～125℃				****
Phase Change Softening Temperature	50℃~60℃				****
Thermal Conductivity	5.0 W/mK				ASTM D5470 (modified)
Thermal Impedance @ 50 psi(345 KPa)	0.014℃-in²/W	0.020℃-in²/W	0.038℃-in²/W	0.058℃-in²/W	ASTM D5470 (modified)
Thermal Impedance @ 50 psi(345 KPa)	0.09℃-cm²/W	0.13℃-cm²/W	0.25℃-cm²/W	0.37℃-cm²/W	ASTM D5470 (modified)

Standard Thicknesses:
0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.012"(0.305mm)

Consult the factory alternate thickness.

Standard Sizes:
10" x 16"(254mm x 406mm) 16" x 400'(406mm x 121.92M)
TIC™800 series are supplied with a white release paper and a bottom liner. TIC™800G series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800G series products.

Reinforcement:
No reinforcement is necessary.
