Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation

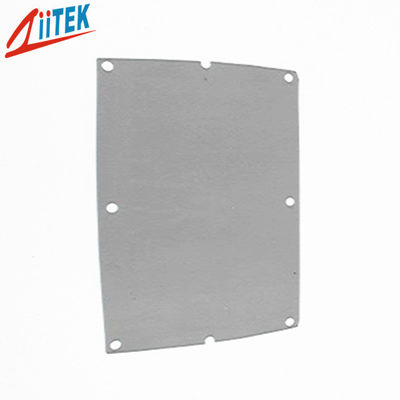

Large Image : Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS806K-09-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation	Key Words:	Thermally Conductive Insulator
Application:	GPU CPU Heatsink Cooling	Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Continuos Use Temp:	-60 To 180℃	Thermal Conductivity:	0.9W/mK
Density:	2.4 G/cc	Thickness Range:	0.006(inch）/ 0.152mm
Color:	Gray

Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation

The TIS^®806K-09-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

> Easy release construction
> Electrically isolating
> High durability

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> CPU
> Display card
> Mainboard/mother board
> Notebook

> Power supply
> Heat pipe thermal solutions

> Set top boxes
> Audio and video components
> IT infrastructure

Typical Properties of TIS^®806K-09-01 Series
Property	Value	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.006inch (0.152mm)	ASTM D374
Tensile Strength(MPa)	34	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	6000	ASTM D149
Dielectric Constant @ 1MHz	5.0	ASTM D150
Volume Resistivity	1.0X10¹⁴ Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	0.9W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.58	ASTM D5470

Standard Thicknesses

0.006inch (0.152mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

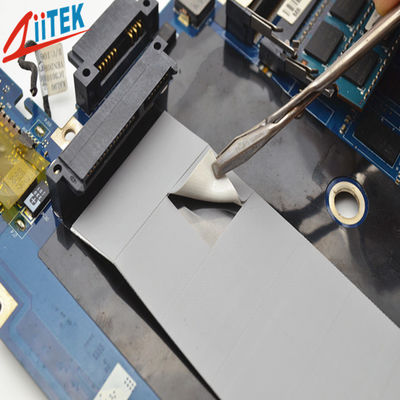

Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation 0

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
