High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink

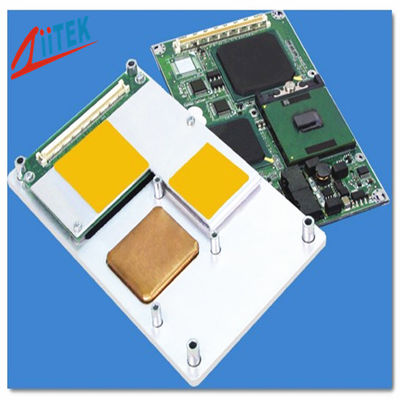

Large Image : High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS805-16-03

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink	Color:	Yellow
Key Words:	Silicone Heating Insulation	Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Continuos Use Temp:	-60 To 180℃	Thermal Conductivity:	1.6W/mK
Density:	2.4 G/cc	Thickness Range:	0.005(inch）/0.127mm
Application:	GPU CPU Heatsink Cooling

High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink

The TIS^®805-16-03 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

> Easy release construction
> Electrically isolating
> High durability

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> CPU
> Display card
> Mainboard/mother board
> Notebook

> Power supply
> Heat pipe thermal solutions

> Memory Modules
> Mass storage devices
> Automotive electronics

Typical Properties of TIS^®805-16-03 Series
Property	Value	Test Method
Color	Yellow	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.005inch (0.127mm)	ASTM D374
Tensile Strength(MPa)	12	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	3000	ASTM D149
Dielectric Constant @ 1MHz	6.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	1.6W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.5	ASTM D5470

Standard Thicknesses

0.005inch (0.127mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

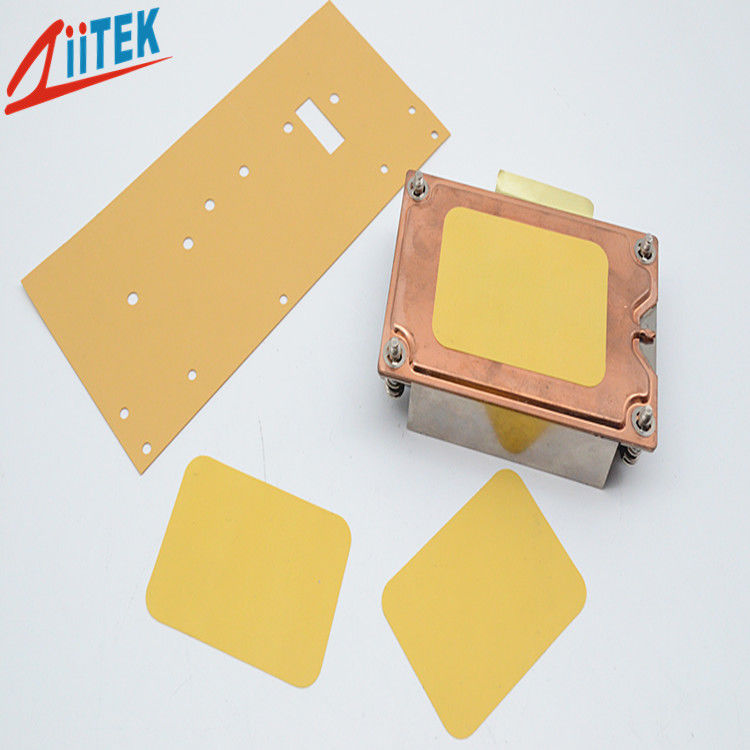

High Temperature Resistance 0.127mm Silicone Heating Insulation For Gpu Cpu Heatsink 0

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
