High Voltage Electronic Thermal Conductive Insulator Thermal Conductive Silicone Insulator Pads For Automotive Electronics

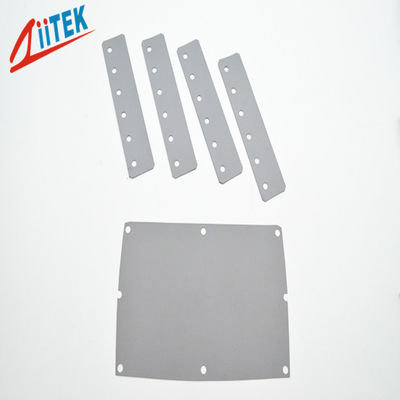

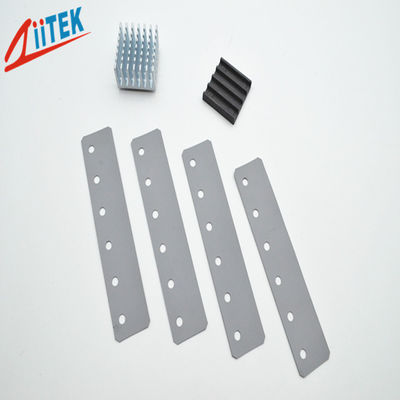

Large Image : High Voltage Electronic Thermal Conductive Insulator Thermal Conductive Silicone Insulator Pads For Automotive Electronics

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS807-09-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	High Voltage Electronic Thermal Conductive Insulator Thermal Conductive Silicone Insulator Pads For Automotive Electronics	Thickness Range:	0.0079（inch）/0.178mm
Color:	Gray	Application:	Automotive Electronics
Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass	Continuos Use Temp:	-60 To 180℃
Volume Resistivity:	1.0X10 Ohm-cm	Thermal Conductivity:	0.9W/mK
Density:	2.4 G/cc	Key Words:	Thermal Conductive Insulator

High Voltage Electronic Thermal Conductive Insulator Thermal Conductive Silicone Insulator Pads For Automotive Electronics

The TIS^®807-09-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

> RoHS compliant
> UL recognized

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIS^®807-09-01 Series
Property	Value	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.007inch (0.178mm)	ASTM D374
Tensile Strength(MPa)	20	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	3500	ASTM D149
Dielectric Constant @ 1MHz	5.5	ASTM D150
Volume Resistivity	1.0X10¹³ Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	0.9W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	1.32	ASTM D5470

Standard Thicknesses

0.007inch (0.178mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
