Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials

Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials
Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials

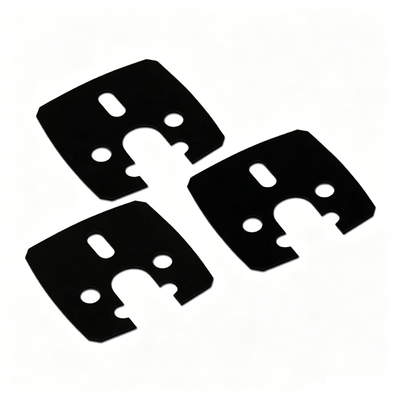

Large Image :  Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIS100-08-01F
Document: TIS100-08-01F_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now

Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials

Description
Products Name: Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials Thickness(inch/mm): 0.012"/0.30
Thermal Conductivity: 0.8 W/m-K Hardness: 60 Shore 00
Dielectric Constant @1MHz: 6.0 Fire Rating: 94-V0
Keywords: Thermal Conductive Insulating Gasket Application: For Heat Transfer

Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials


The TIS®100-08-01F Series is a high-efficiency thermal conductive insulating product. lt incorporates insulating silicone substrates into thermally conductive materials to achieve both insulation and heat conduction. At the same time, the glass fibers provide excellent tear and puncture resistance. The product is non-toxic and environmentally friendly, has flame-retardant properties, and is mainly used for isolating power supplies and heat sinks.


Features:

>Surface is relatively soft and has good heat conductivity
>Good dielectric strength
>Low thermal resistance with high voltage isolation
>Resistant to tears and punctures

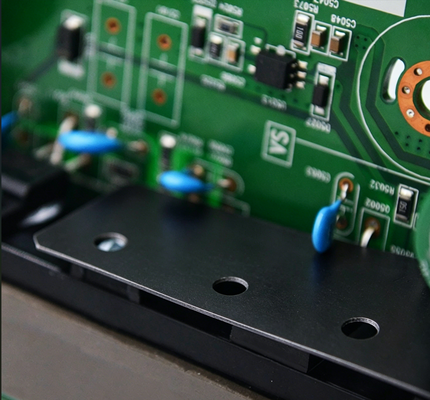

Applications:


>Car battery and power supply
>Power semiconductors
>Audio and video components
>Motor controllers


Typical Properties of TIS®100-08-01F Series
Product Model TIS112-08-01F TIS120-08-01F Test method
Color Black Visual
Construction Ceramic filled silicone elastomer/ Fiberglass ******
Density(g/cm³) 1.8 ASTM D792
Thickness Range(inch/mm) 0.012 0.020 ASTM D374
0.30 0.50
Hardness (Shore 00) 60 ASTM 2240
Tensile Strength (Mpa) 21 ASTM D412
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5000 ASTM D149
Dielectric Constant @1MHz 6.0 ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 0.8 W/m-K ASTM D5470
0.8 W/m-K ISO22007


Products specification


Standard Thickness: 0.012" (0.30 mm),0.020" (0.50 mm)
Standard Size: 12"X160" (304 mmX48.7M)


Soft Thermal Conductive Insulating Gasket For Heat Transfer With Soft Compressible Tear-resistant Silicone Thermal Interface Materials 0

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:


Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel


All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL


FAQ

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.


Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .


Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
