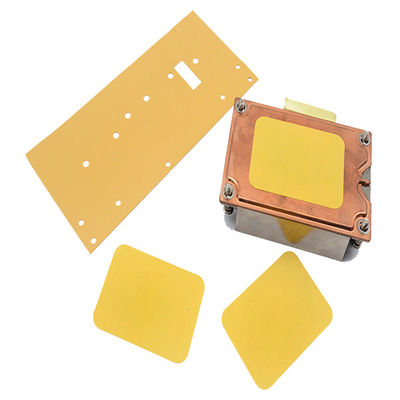

Thermal Gap Insulator Pad 0.305MM Thermally Conductive Insulators Sheet For Automotive Electronics

Large Image : Thermal Gap Insulator Pad 0.305MM Thermally Conductive Insulators Sheet For Automotive Electronics

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS812-11-03

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	Thermal Gap Insulator Pad 0.305MM Thermally Conductive Insulators Sheet For Automotive Electronics	Thickness Range:	0.012(inch）/0.305mm
Key Words:	Thermally Conductive Lnsulators	Application:	Automotive Electronics
Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass	Continuos Use Temp:	-60 To 180℃
Thermal Conductivity:	1.1W/mK	Density:	2.4 G/cc
Color:	Yellow

Thermal Gap Insulator Pad 0.305MM Thermally Conductive Insulators Sheet For Automotive Electronics

The TIS^®812-11-03 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

> Electrically isolating
> High durability

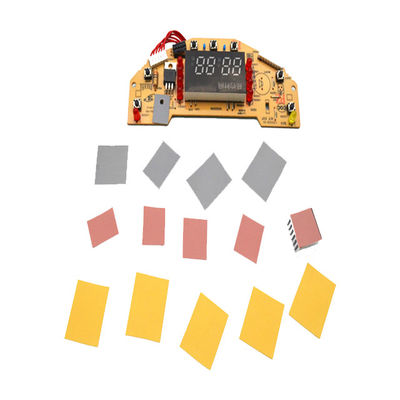

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> Mainboard/mother board
> Notebook
> Power supply

> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices

Typical Properties of TIS^®812-11-03 Series
Property	Value	Test Method
Color	Yellow	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.012inch (0.305mm)	ASTM D374
Tensile Strength(MPa)	1.5	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	5000	ASTM D149
Dielectric Constant @ 1MHz	5.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	1.1W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.61	ASTM D5470

Standard Thicknesses

0.012inch (0.305mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
