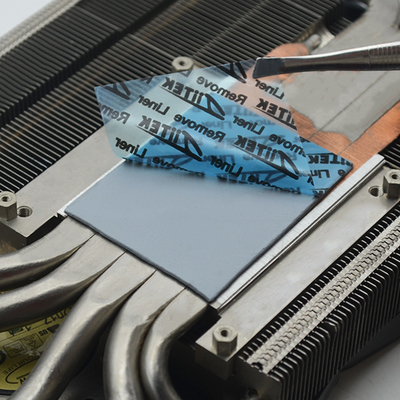

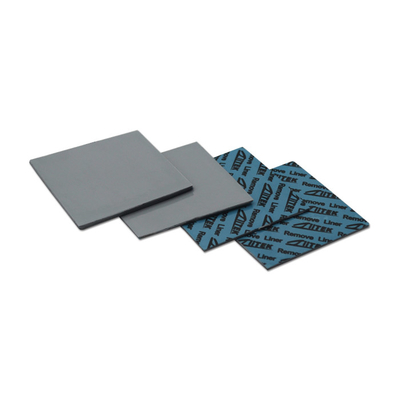

Silicone Conductive Soft Gpu Cpu Thermal Pad with 12.0W/m-K Thermal Conductivity 3mm 2mm 1.5mm

Custom 12W/Mk 3Mm 2Mm 1.5Mm Silicone Conductive Soft Gpu Cpu Termal Pad​

TIF^®100 12055-62 series of thermal interface materials is specifically designed to fill air gaps between heat-generating components and heat sinks or metal baseplates. It offers excellent compliance, alowing it to conform fightly to heat sources with varying shapes and height dferences. Even in confined or iregular spaces,it maintains stable thermal conductivity, enabling efficient heat transfer from discrete components or the entire PCB to the metal housing or heat sink. This significantly improves the heat dissipation efficiency of electronic components, thereby enhancing operational stability and extending device lifespan.

Features:
> Excellent thermal conductivity 12.0W/mK

> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options

> RoHS compliant
> Electrically isolating
> High durability

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.



Product Specification
Product Thicknesses: 0.03"(0.75mm)~0.200"(5.00mm) with increments of 0.01(0.25mm)

Product Sizes:16" x 16"(406mm x406mm)



Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1(Single-sided hardening).

Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).
Notes:FG (Fiberglass) provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25to 0.5mm).

The TIF series is available in custom shapes and various forms.For other thicknesses or more information, please contact us.

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
