Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel

Large Image : Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF015-07S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000tubes
Delivery Time:	7-15work days
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Name:	Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel	Specific Gravity:	2.5 G/cm3
Color:	Green	Continuous Use Temperature:	-45~200℃
Good Thermal Conductive:	1.5 W/mK	Dielectic Breakdown:	200 V/mil
Flame Rating:	V-0	Keywords:	Thermal Conductive Gel
Highlight:	Manufacturer Thermal Conductive Gel , 1.5W Thermal Conductive Gel , Ultra-High Thermal Conductive Gel

Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel

TIF^TM015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF^TM015-07 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

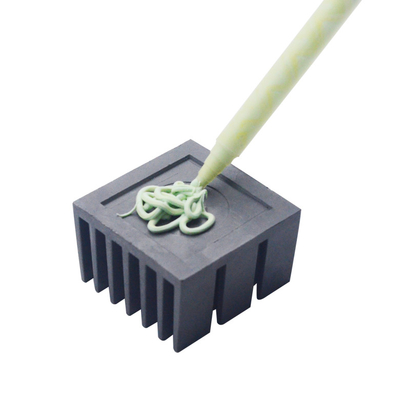

TIF^TM015-07 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF015-07 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .

TIF015-07-Specification-sheet.-pdf.pdf

Application

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions

Feature

> Thermal conductivity: 1.5W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly

> Proven long-term reliability

TIF^TM015-07 Property
Color	Green	Visual
Construction & Composition	Ceramic filled silicon material	**********
Viscosity	4000 Pa.s	GB/T 10247
Specific Gravity	2.5 g/cc	ASTM D297
Thermal conductivity	1.5 W/mK	ISO 22007-2
Thermal diffusivity	0.847 mm2/s	ISO 22007-2
Specific heat capacity	2.2 MJ/m³K	ISO 22007-2
Continuous Use Temperature	-45 ~200°C	******
Dielectric breakdown strength	200 V/mil	ASTM D149
Flame Rating	94V0	E331100
Outgassing,%TML	0.90%	ASTM E595

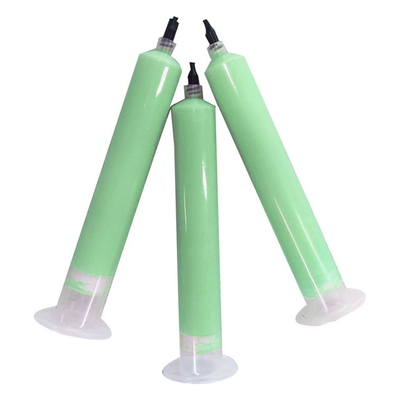

Package :

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.
