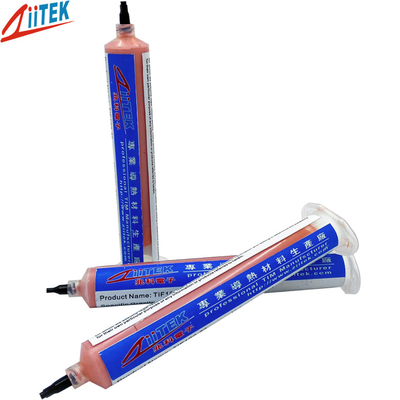

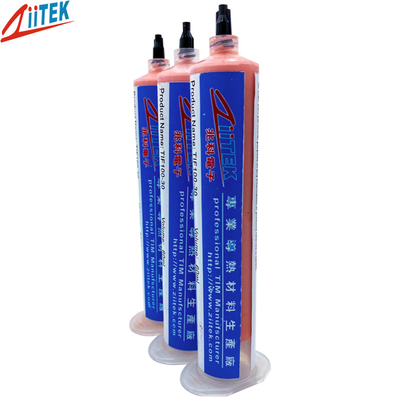

TIFTM070-11 is a soft silicone putty thermal gap filler,which blend with exclusiveformula,that offer superior thermal performance, and compressibility.Due to TIFTM070-11 is made by high vicosity silicon oil ,that can prevent thermalformula seprate from it.Besides ,compared with traditionally thermal pad, it cancontrol bonded shifiting issue much better.
TIF070-11-silicone-putty-thermal-gap-filler.pdf
TIFTM070-11 operation mold is simliar as grease ,such as silkprint and screen printor automatic injected facility.TIFTM070-11 can be applied on chip micro processor,PPGAs,Micro BGApackage,BGA package,DSP chip,LED lighting and other high power electriccomponent.
Feature
>Thermal conductivity
>Soft, very low compression
>Low thermal inpedance
>Operate automaticly
>Proven long-term reliability
Application
>Heat-sink & frame
>LED backlight module,LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controler
>Telecom industry
>Semiconductor 'automatic laboratory equipment.
| TIFTM070-11 Property |
| Color |
Gray |
Visual |
| Construction & Composition |
Ceramic filled silicon material |
********** |
| Viscosity |
21280000 cps |
GB/T 10247 |
| Specific Gravity |
3.50 g/cc |
ASTM D297 |
| Thermal conductivity |
7.0 W/mK |
ISO 22007-2 |
| Thermal diffusivity |
2.80 mm2/s |
ISO 22007-2 |
| Specific heat capacity |
2.70 MJ/m3K |
ISO 22007-2 |
| Continuous Use Temperature |
-40 ~150°C |
****** |
| Dielectric breakdown strength |
200 V/mil |
ASTM D149 |
| Flame Rating |
94V0 |
E331100 |
Packing details
30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
