| Name: | Good Performance 3.0W/mk Thermally Conductive Putty For Mainboard And Mother Board | Keyword: | Heat Conductive Putty |
|---|---|---|---|
| Applications: | Mainboard/mother Board | Material: | Silicone |
| Certification: | UL | Thermal Conductivity: | 3.0W/m-K |
| Color: | White / Blue |
Good Performance 3.0W/mk Thermally Conductive Putty For Mainboard and Mother Board
Company Profile

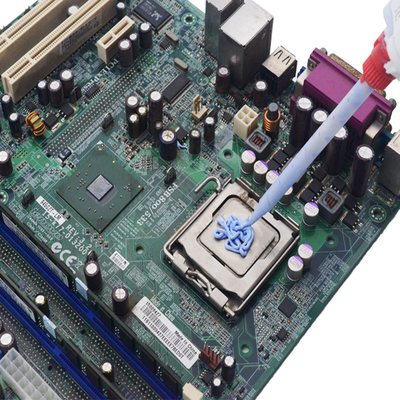

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF030AB-05S-Datasheet-REV02.pdf

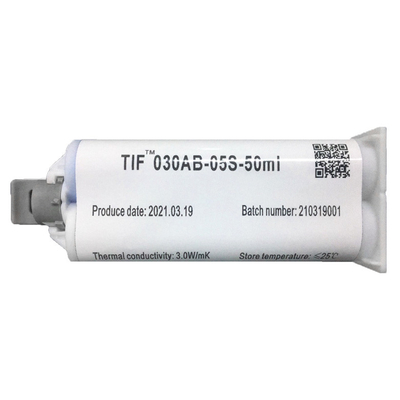

Ziitek TIF030AB-05S is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.
< Good thermal conductive: 3.0W/mK
< UL recognized
< Naturally tacky needing no further adhesive coating
< Two-part formulation for easy storage
< High durability
< Optimized shear thinning characteristics for ease of dispensing
Applications
< Notebook
< Set top boxes
< Monitoring the Power Box
< High speed mass storage drives
< Heat sink any heat generating semiconductor
| Typical Properties of TIF030AB-05S Series | ||
| Typical Uncured Material | ||
| Property | Numerical | Test Method |
| Color/Part A | White | Visual |
| Color/Part B | blue | Visual |
| Viscosity as Mixed (cps) | 900,000 cps | GB/T 10247 |
| Density | 3.0g/cc | ASTM D792 |
| Mix Ratio | 1:1 | ****** |
| Shelf Life@25℃ | 6 months | ****** |
| Cure Schedule | ||
| Pot Life @25℃ | 30min | ****** |
| Cure @25℃ | 60min | ****** |
| Cure @100℃ | 30min | Visual |
| Cure Properties | ||
| Color | blue | Visual |
| Hardness | 45 shore00 | ASTM D2240 |
| Continuous Use Temp | ﹣45~200℃ | ****** |
| Voltage Strength | 200 V/mil | ASTM D149 |
| Dielectric Constant | 4.6MHz | ASTM D150 |
| Volume Resistivity | 1012 Ohm-meter | ASTM D257 |
| Flame Rating | 94V0 | E331100 |
| Thermal Conductivity | 3.0W/Mk | ISO22007-2 |
| Specific Heat Capacity | 2.2MJ/m3K | ISO22007-2 |
Product packing details:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.
