Insulation Silicone Pads For RDRAM Memory Modules 12 Shore 00 3.0 W/M-K

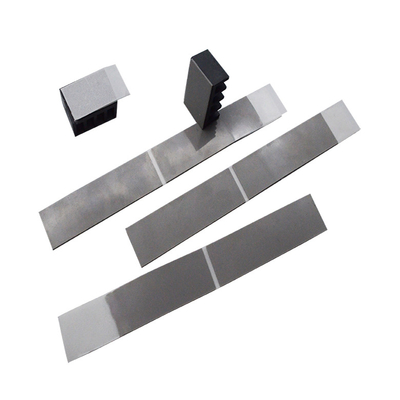

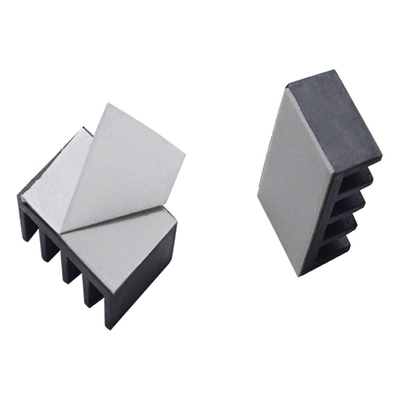

Large Image : Insulation Silicone Pads For RDRAM Memory Modules 12 Shore 00 3.0 W/M-K

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1180-30-11ES

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Heat Capacity:	1 L/g-K	Thermal Conductivity:	3.0 W/m-K
Hardness:	12 Shore 00	Density:	2.9 G/cc
Continuos Use Temp:	-40 To 160℃	Flame Rating:	94 V0
Highlight:	silicone thermal heatsink insulator pads , Silicone Pads For RDRAM Memory Modules , 12 Shore 00 Silicone Pads

good performance insulation silicone pads for RDRAM memory modules ,12 Shore 00,3.0 W/m-K

The TIF1180-30-11ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF1180-30-11ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive: 3.0 W/mK

>Thickness:4.5mmT

>hardness:12 shore00

>Colour: gray

>Moldability for complex parts

>High tack surface reduces contact resistance

>Fiberglass reinforced for puncture, shear and tear resistance

Applications

>RDRAM memory modules

>Micro heat pipe thermal solutions

>Automotive engine control units

>Automotive electronics

>Set top boxes

>Audio and video components

>IT infrastructure

Typical Properties of TIF1180-30-11ES Series
Color	gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.9g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	4.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	12 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgassing(TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	2.9 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	3.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
