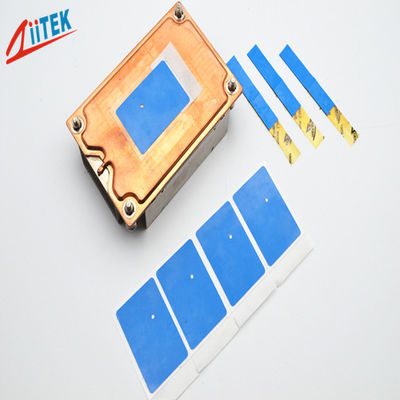

TIF120-40-12E Ultra Soft Thermal Gap Pad For LED Lighting 4 W/M-K Blue Thermal Silicone Gap Filler

TIF120-40-12E ultra soft Thermal Conductive pad For LED lighting 4 W/M-K blue thermal silicone gap filler​

Company Profile

 Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIF120-40-12E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

>  Good thermal conductive: 4 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Electrically isolating

Applications:

>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  Mass storage devices
>  Micro heat pipe thermal solutions
>  IT infrastructure
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)

Standard Thicknesses:
0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:


Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:


TIF™ series sheets type can add with fiberglass reinforced.
