| Thermal Conductivity& Compostion: | 1.8W/m-K | Color: | Grey |
|---|---|---|---|
| Branch Name: | ZIITEK | Hardness: | 20 SHORE00 |
| Application: | Wireless Routers | Thickness: | 2.0mmT |
| High Light: | 2.0mmT Silicone Pads,Silicone Pads 20 Shore00,Heat Pipe Thermal Silicone Pads |
||

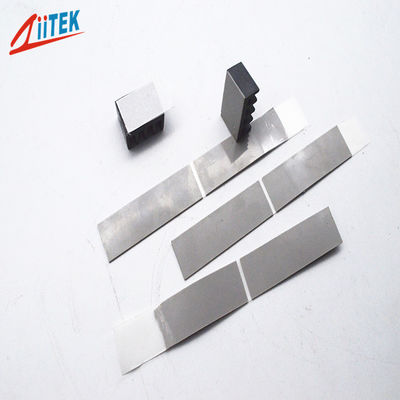

2.0mmT new developed silicone pads 20 Shore00 For Heat pipe thermal solutions 1.8W / MK
The TIF580-18-11US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
TIF500-18-11US Datasheet-REV02.pdf
Features:
> Good thermal conductive: 1.8W/mK
>Thickness:2.0mmT
>Electrically isolating
>High durability
>High tack surface reduces contact resistance
>RoHS compliant
Applications:
>Heat pipe thermal solutions
>Memory Modules
>Mass storage devices
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>LED Ceilinglamp
>Monitoring the Power Box
>AD-DC Power Adapters
|
Typical Properties of TIF™580-18-11US
|
||||
| Color |
Grey |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
| Construction & Compostion |
Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
| Specific Gravity | 2.8 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
| Heat Capacity | 1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
| Hardness | 20 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
|
Thickness |
2.0mmT |
*** |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
| Continuos Use Temp | -40 to 160℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
| Dielectric Constant | 4.2 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
| Fire rating | 94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
