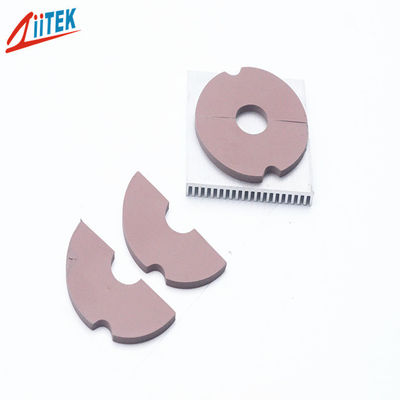

High thermal conductivity 6.2W thermal gap filler pad 1mmT 45shore00 TIF140-62-31S for LED street light

High thermal conductivity 6.2W thermal gap filler pad 1mmT 45shore00 TIF140-62-31S  for LED street light
High thermal conductivity 6.2W thermal gap filler pad 1mmT 45shore00 TIF140-62-31S  for LED street light
video play

Large Image :  High thermal conductivity 6.2W thermal gap filler pad 1mmT 45shore00 TIF140-62-31S for LED street light

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF140-62-31S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Thermal Conductivity: 6.2 W/m-K Volume Resistivity: 4.0X10" Ohm-meter
Color: GARNET Hardness, Shore 00: 45
Product Name: TIF140-62-31S
High Light:

6.2W thermal gap filler pad

,

thermal gap filler pad 1mmT

,

45shore00 thermal gap filler pad

High thermal conductivity 6.2W thermal gap filler pad 1mmT 45shore00 TIF140-62-31S for LED street light





  The TIF140-62-31S thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. This product can be applied to Heat Sinking Housing at LED-lit BLU in LCD.



Ziitek Thermal Conductive Materials & Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.




Features:


>  Good thermal conductive: 6.2 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness


Applications:


>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)


Typical Properties of TIF140-62-31S Series
Color

Garnet

Visual Composite Thickness  hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm

0.55

20mils / 0.508 mm

0.82

Specific Gravity

2.10 g/cc

ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45

Hardness
45
(Shore 00)
ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05

Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
>1500~>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56

Dielectric Constant
5.5 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77

Volume Resistivity
4.0X10"
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14

Thermal conductivity
6.2 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470


Standard Thicknesses:
0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
